Boxy Robot Firmware Upgrade
Online Upgrade
Preparation
Upgrade website: https://update.icrobot.cn/
(Recommended browsers: Chrome or Microsoft Edge)Hardware Preparation
|
|
|
|---|---|---|
ICBlocks Boxy Robot x1 |

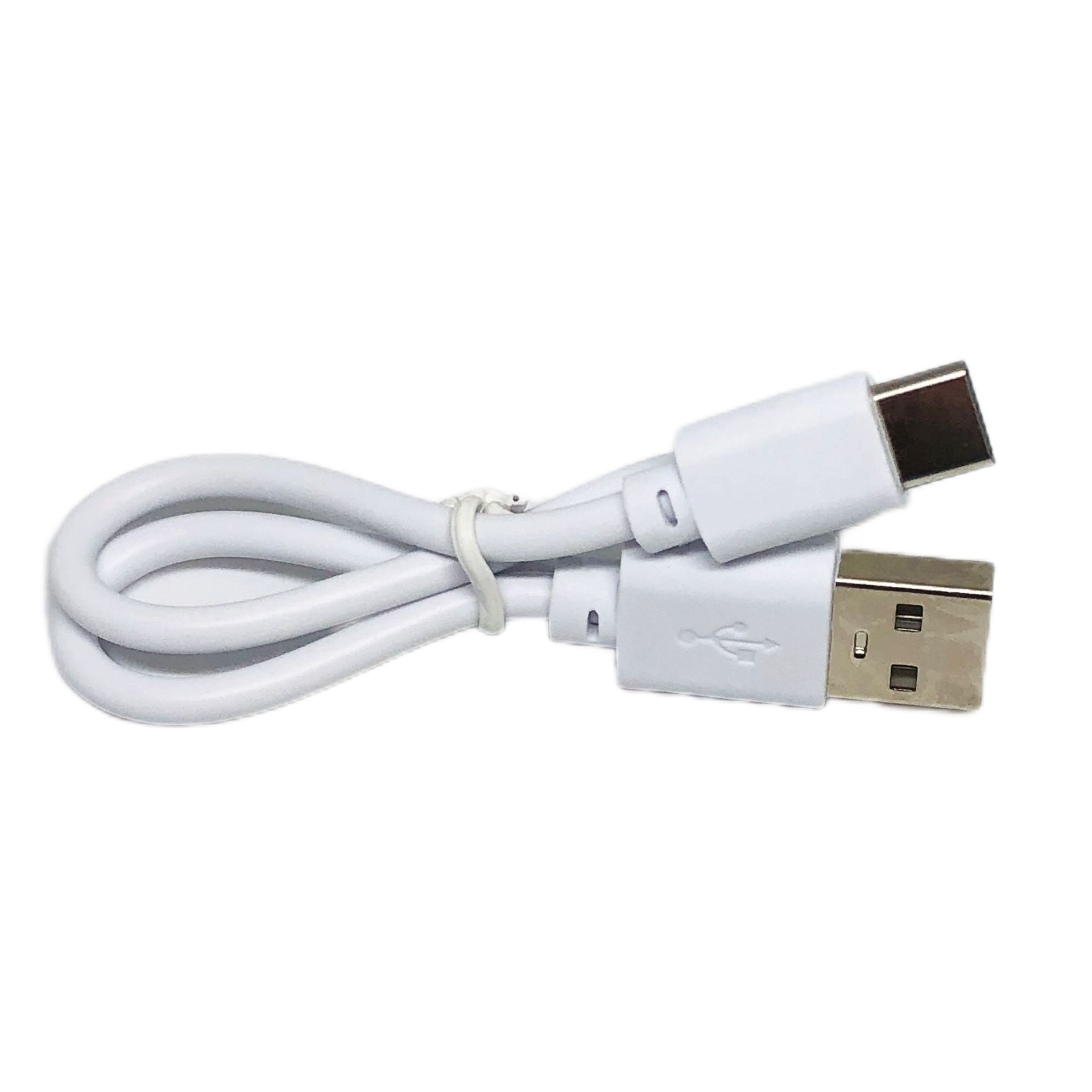

USB-C Data Cables x2 |

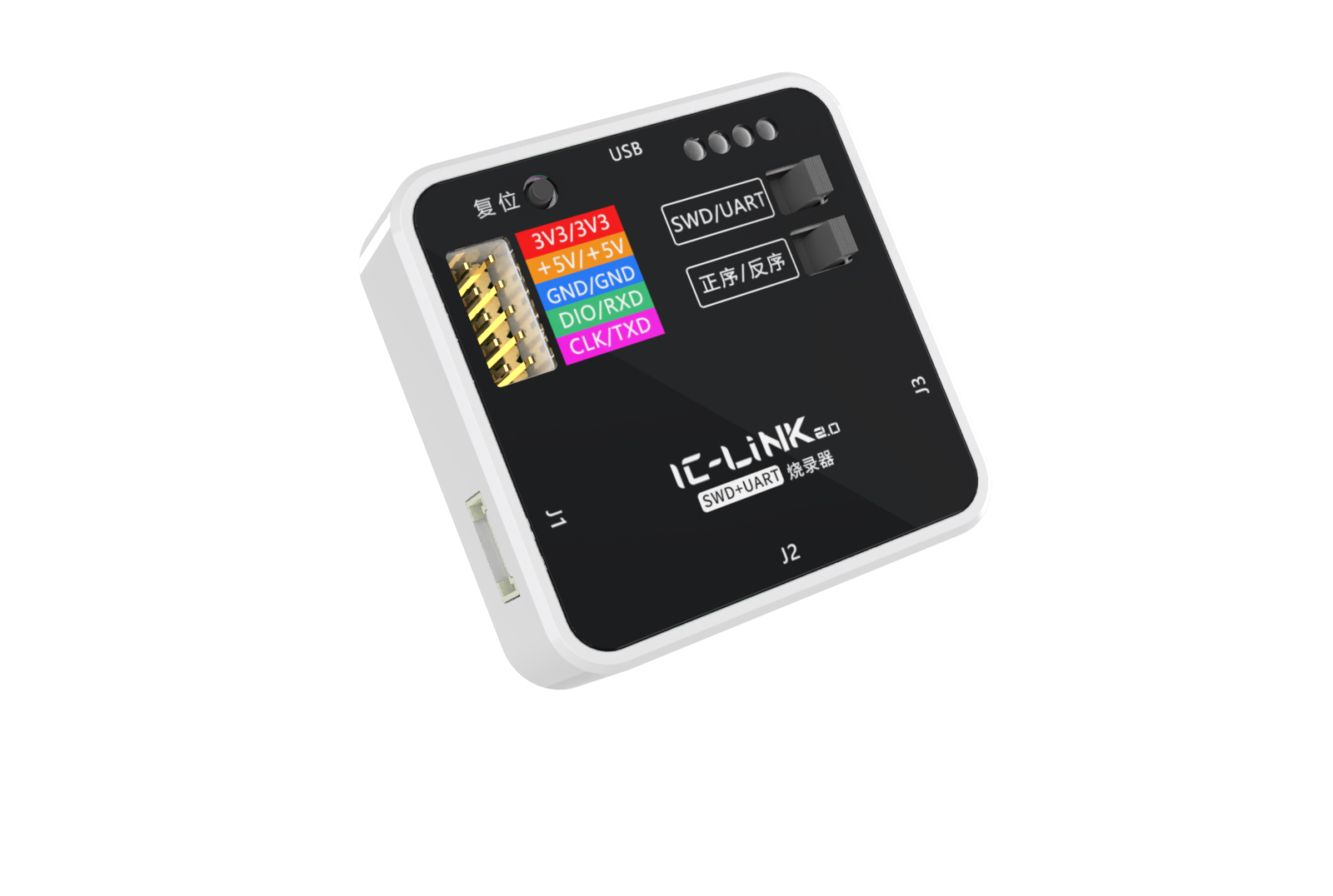

ICLink 2.0 Upgrade Tool x1 |
Upgrade Steps
|
|
|---|---|

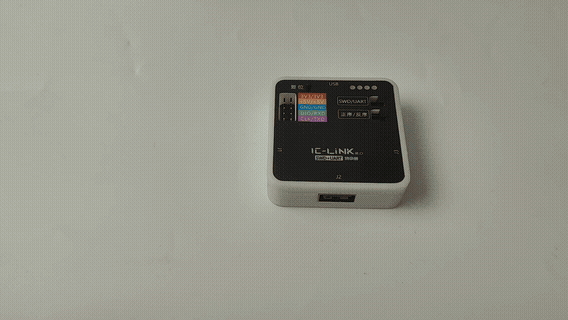

??Toggle the switch on the ICLink 2.0 to the SWD/Forward position. |

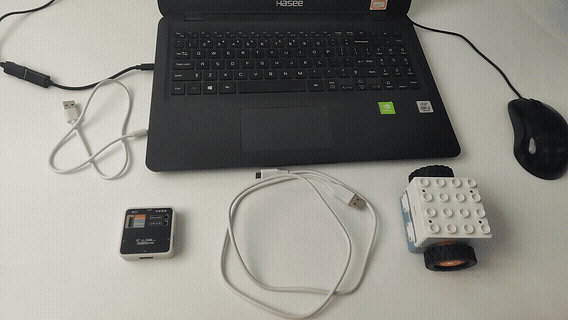

??Connect the ICLink 2.0 to the Boxy Robot using one Type-C cable, then connect the ICLink 2.0 to your PC via USB using the second USB-C cable. |
|
|

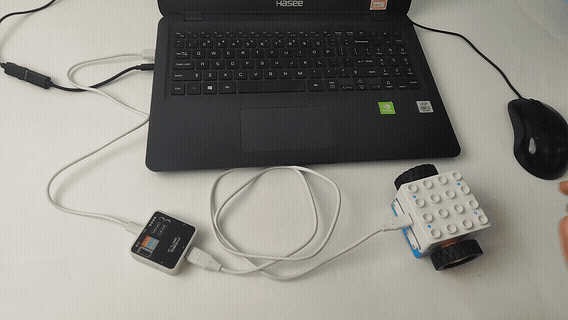

③Once connected, the Boxy Robot’s indicator light will show a charging status. |

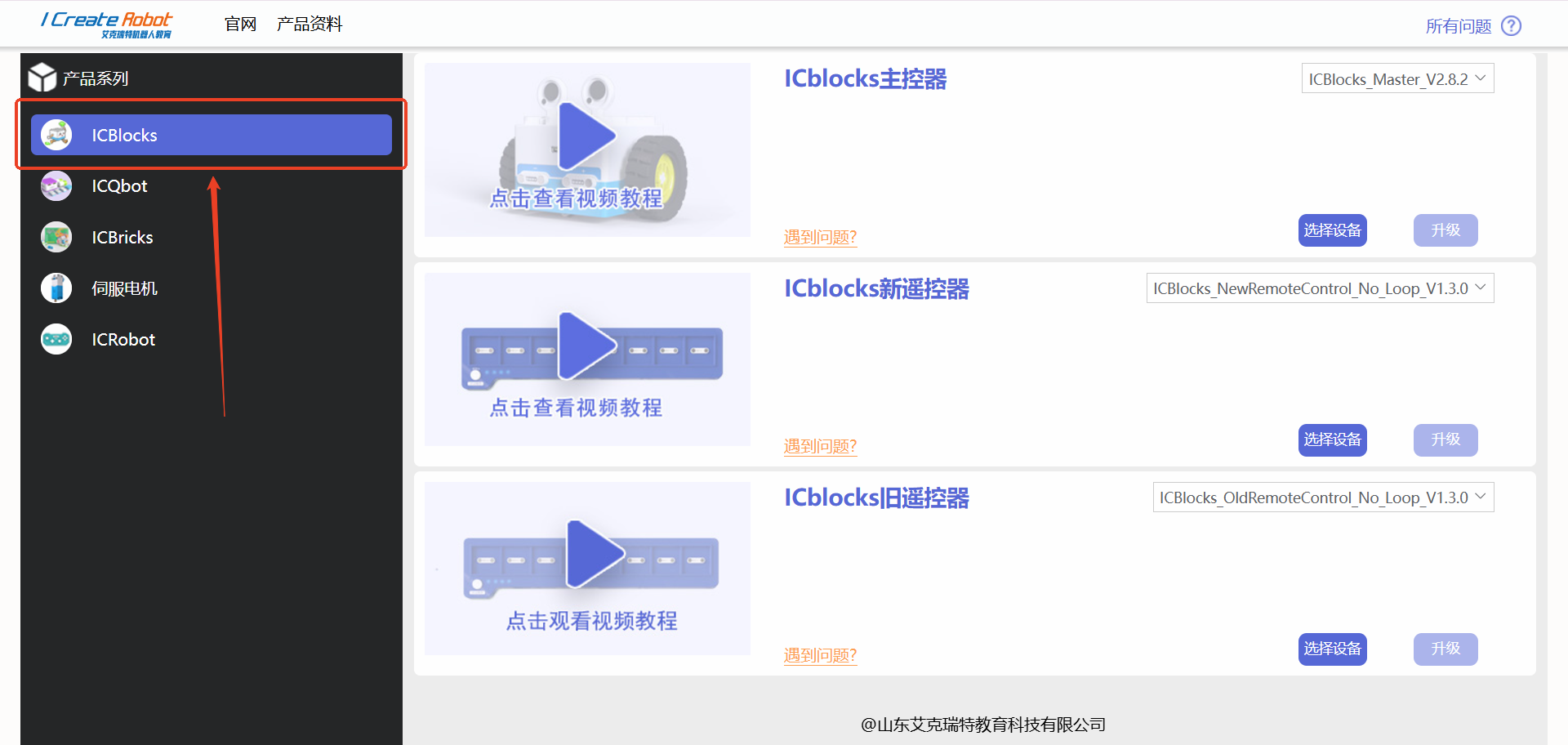

④Open the firmware upgrade platform in Chrome or Microsoft Edge, and select the ICBlocks Series from the left panel. |
|
|
⑤Locate the Boxy Robot on the right panel. Expand the dropdown list to view available firmware upgrades. |

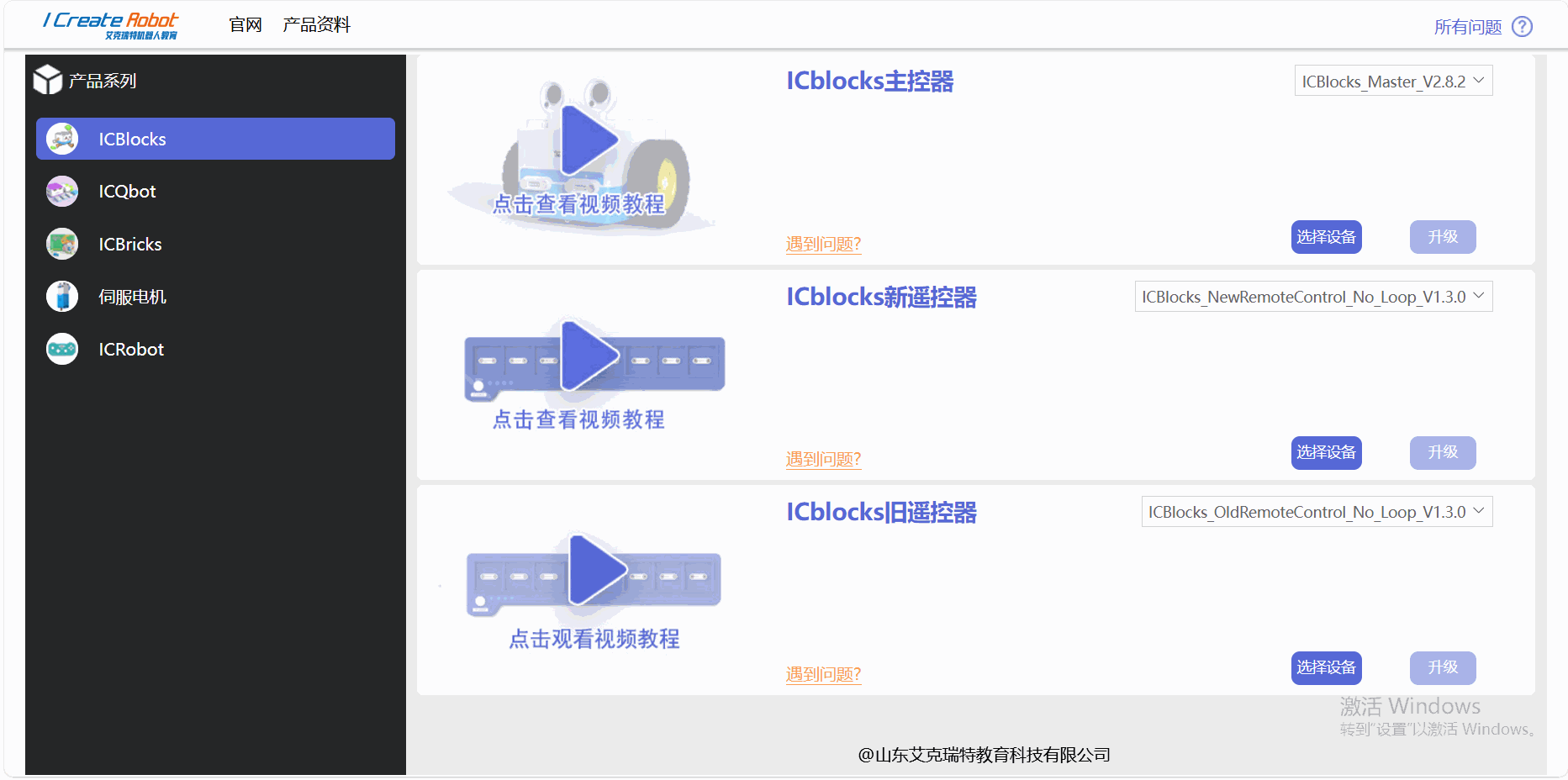

⑥Click “Connect Device”. If no device is detected, check the connections or ensure the steps above were correctly followed. Once connected, select the device. |
|
|
⑦Click “Upgrade” and wait for the page to display “Upgrade Successful.” Observe the blue indicator light on the ICLink 2.0 for confirmation of completion. |

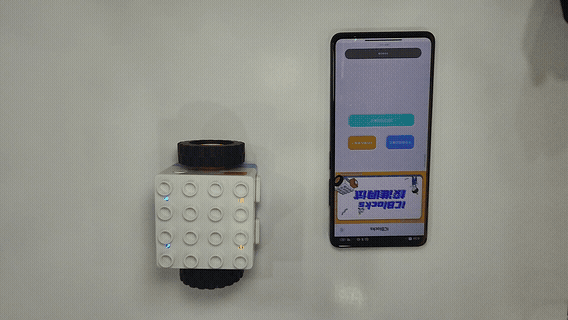

⑧Connect the upgraded Boxy Robot to the ICBlocks Calibration and Debugging Tool. |
|
|

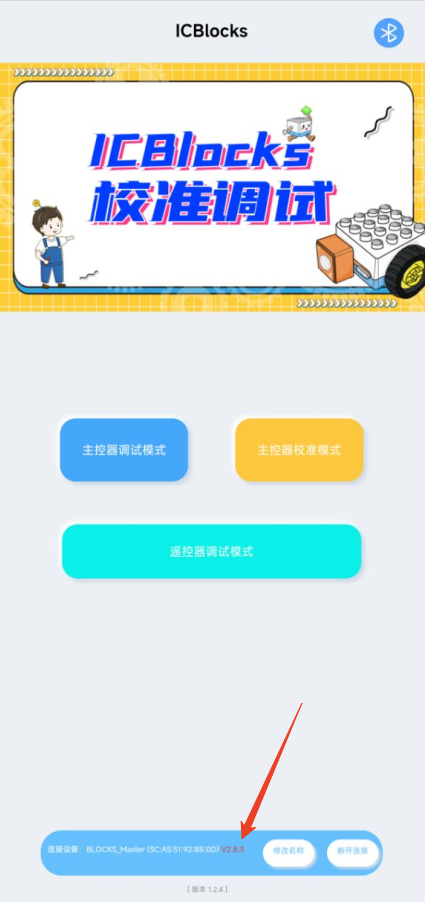

?? On the Home Interface of the software, check the device connection status at the bottom to verify the firmware version. Firmware versions below 2.8.3 do not support software version checking. |
Local Upgrade
Preparation
Software Preparation
Firmware download link: [Click Here]
Hardware Preparation
|
|
|
|---|---|---|

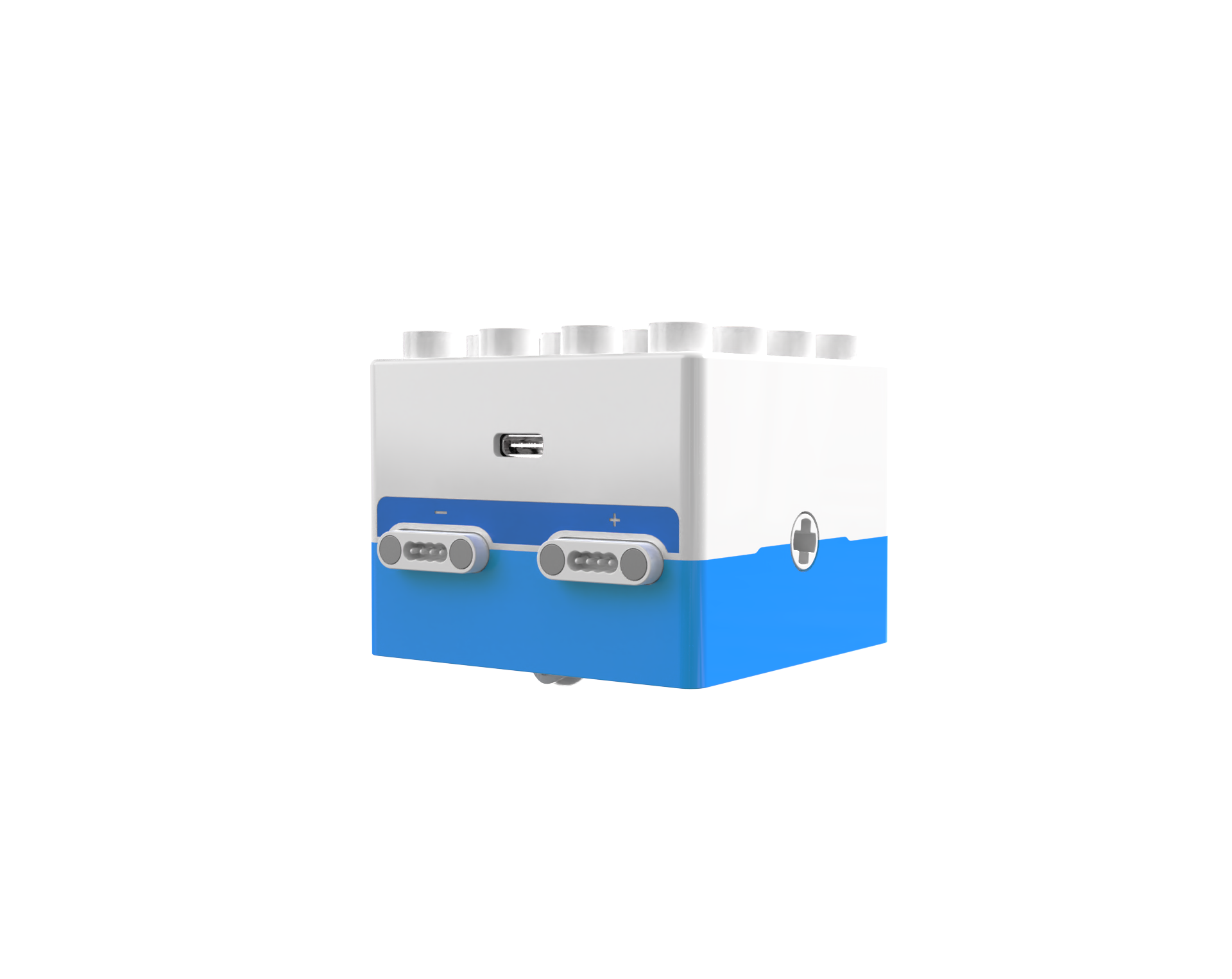

ICBlocks Boxy Robot x1 |
USB-C Data Cable x1 |

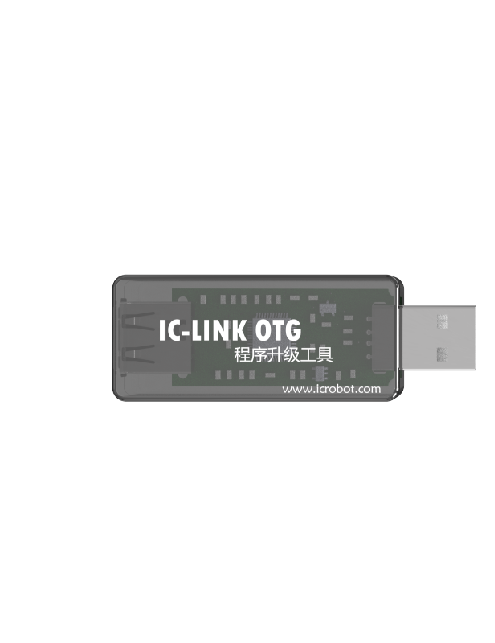

ICLink 1.0 Upgrade Tool x1 |
Upgrade Steps
|
|
|---|---|

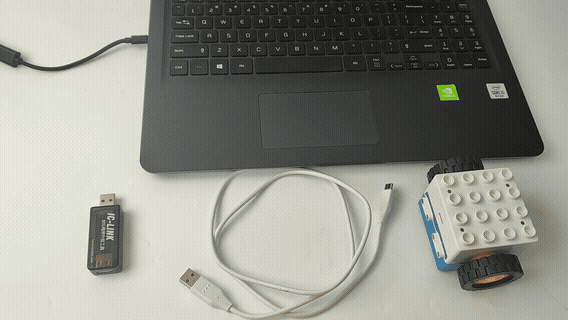

?? Connect the ICLink 1.0 to the Boxy Robot using the USB-C cable, then connect the ICLink 1.0 to your PC via USB. |

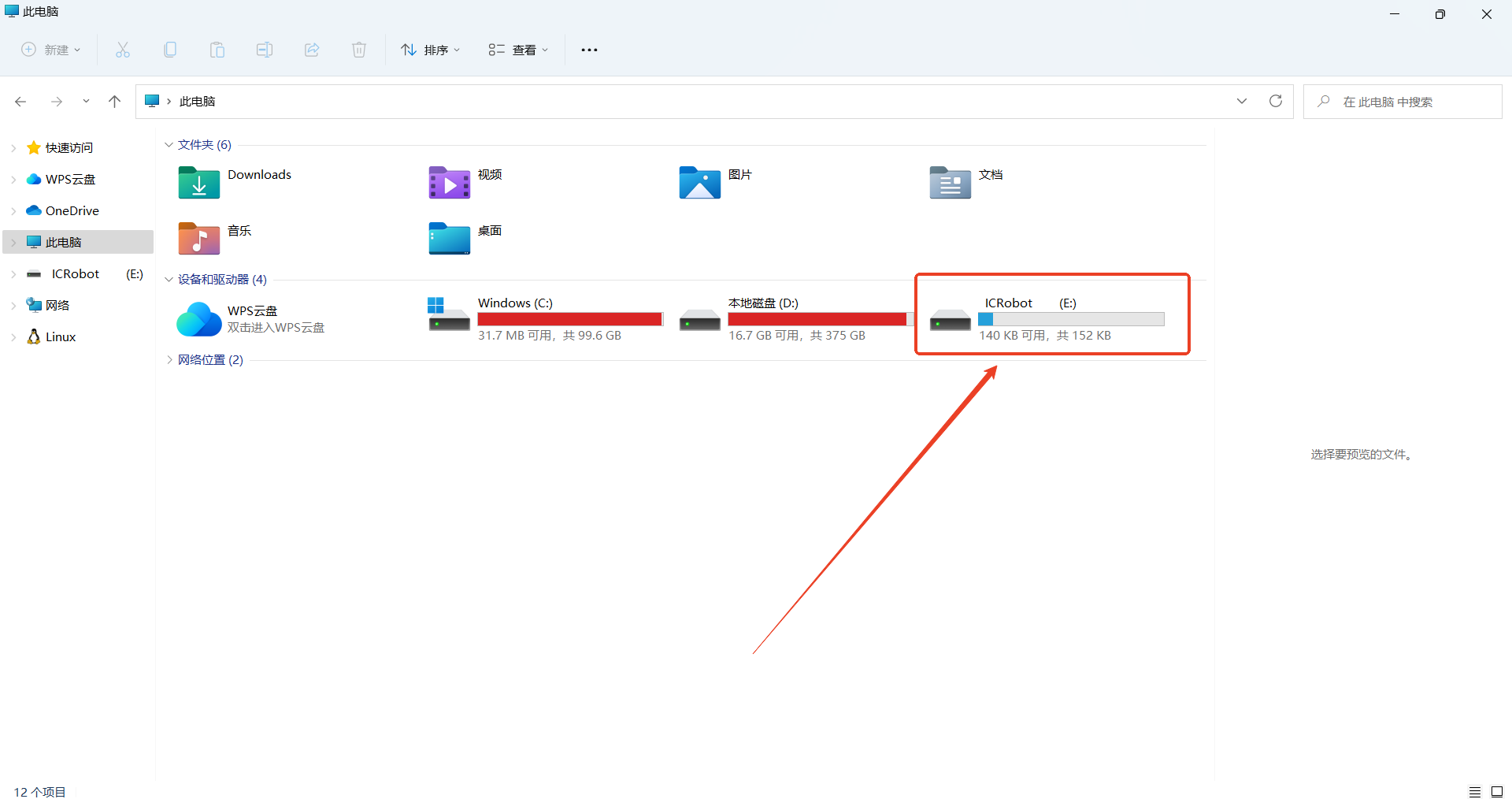

?? Open File Explorer and check for a drive labeled “ICRobot.” |
|
|
?? Use your browser to navigate to the company website and download the desired firmware. |

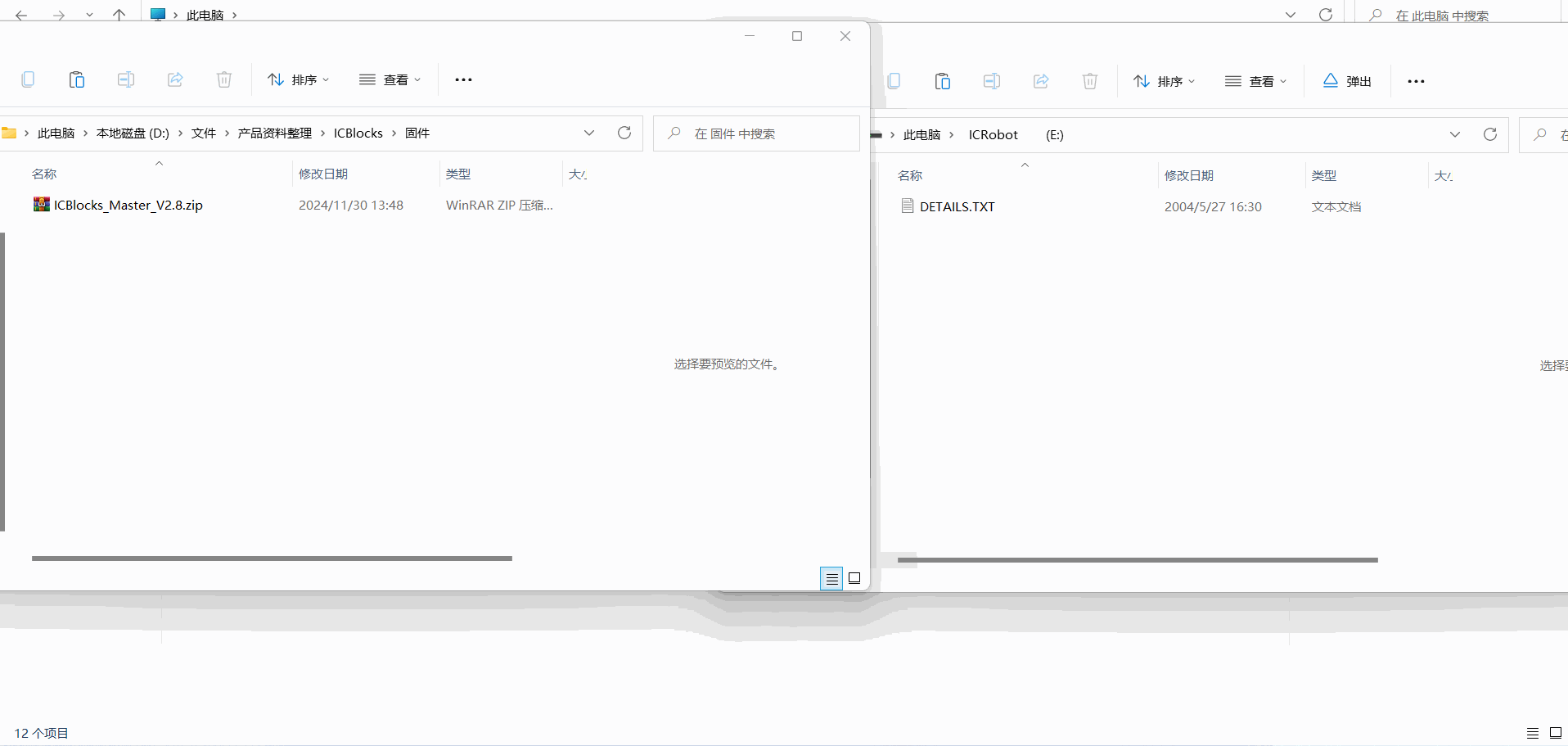

④Extract the downloaded ZIP file and copy the firmware file to the “ICRobot” drive. Ensure the drive contains only the “DETAILS.TXT” file. If a “FAIL.TXT” file appears, reconnect the ICLink 1.0 to the USB port and repeat the process. |
|
|
?? Wait for the copying to complete and observe the green indicator light on the ICLink 1.0 for confirmation of completion. |

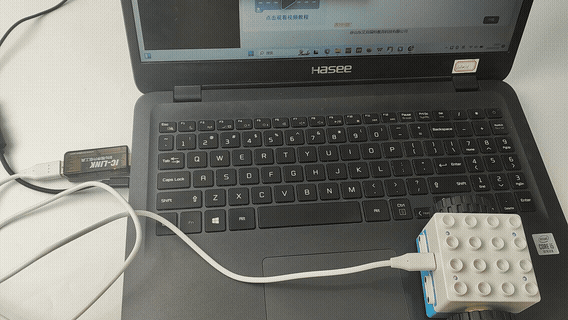

?? Connect the upgraded Boxy Robot to the ICBlocks Calibration and Debugging Tool. |
|
|
⑦On the Home Interface of the software, check the device connection status at the bottom to verify the firmware version. Firmware versions below 2.8.3 do not support software version checking. |
