Power Block

Introduction

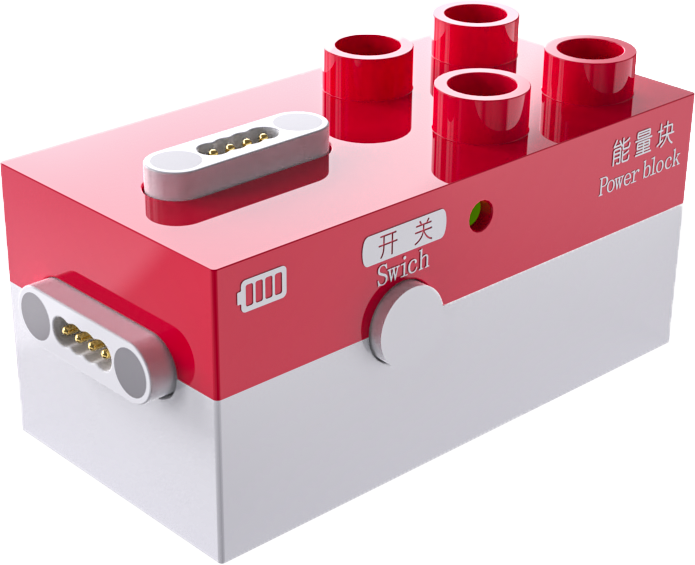

The Power Block is an independent power supply block that provides power to motors, record block, expression block, and LED block.

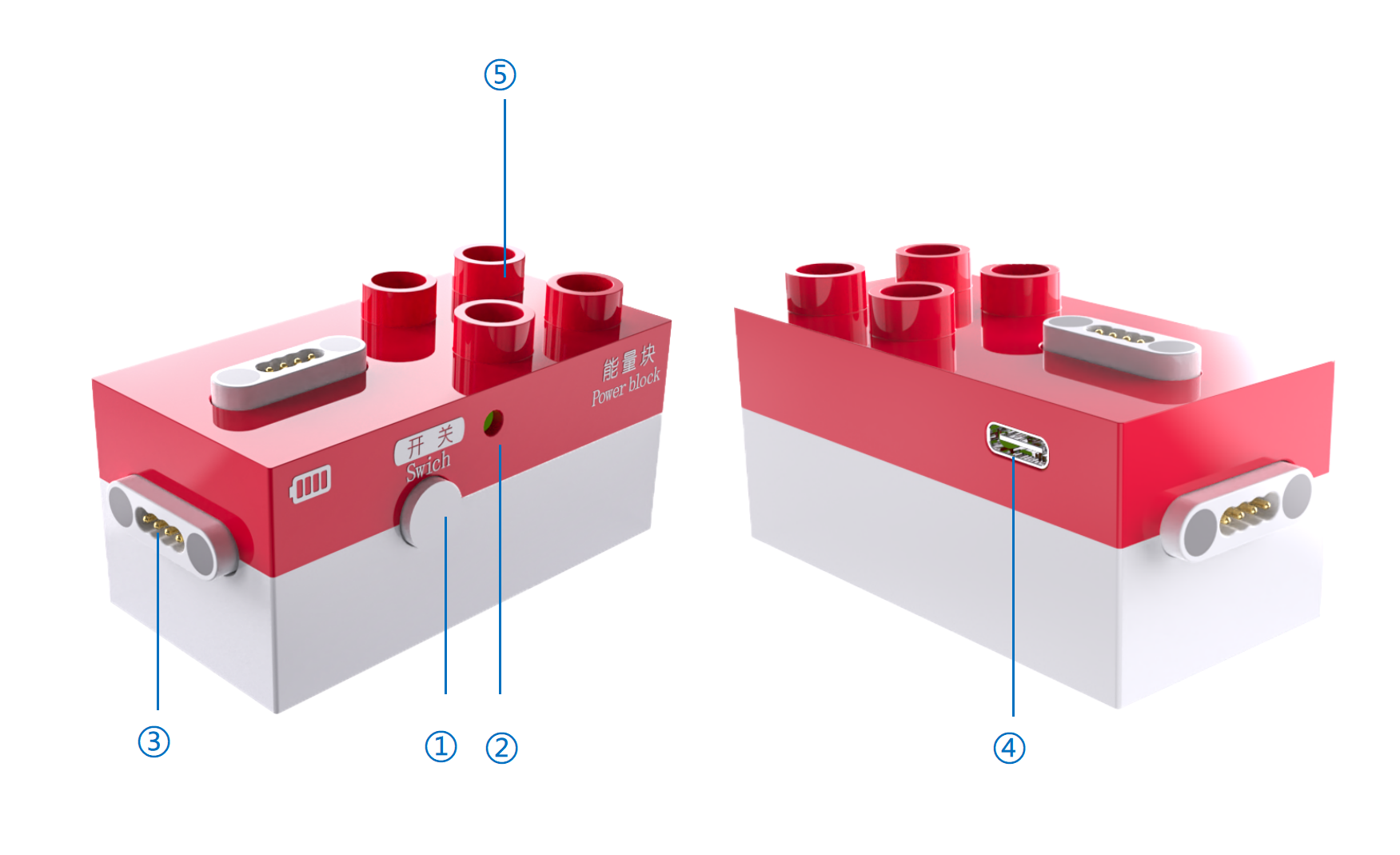

Structure

No.	Name	Description
①	Power Button	Press and hold the power button for 1s to turn the device on/off.
②	Battery Indicator	Battery Status: 1. Charging State a. Charging: Green light flashes b. Fully charged: Green light stays on 2. Operating State Power levels are indicated by four color-coded levels: Green: Full charge; Yellow: High battery; Orange: Medium battery; Red: Low battery. Low Battery Warning: Red light flashes to indicate insufficient power.
③	Magnetic Port	Two magnetic ports that can provide power to actuator blocks.
④	USB-C Port	Used for charging the Power Block and for firmware upgrades.
⑤	Building Structure	Compatible with LEGO DUPLO large-brick building blocks.

Specifications

Item	Description
Name	ICBlocks- Power Block
Code	B0010015
Dimensions	66×33.5×32 mm
Weight	38 g
Appearance Material	ABS
Mainboard/Chip	STM32G030F6P6
Battery Capacity	650mAh（LiPo）
Charging Input	5V/1A
Battery Life	3 h
Connection/Transmission	USB-C
Magnetic Block Ports	2
Building Compatibility	LEGO DUPLO
Age	3+

Usage Instructions

By directly connecting the record block, expression block, LED block (or color LED block), and motors to the Power Block’s magnetic ports, users can directly control and operate these actuator blocks.

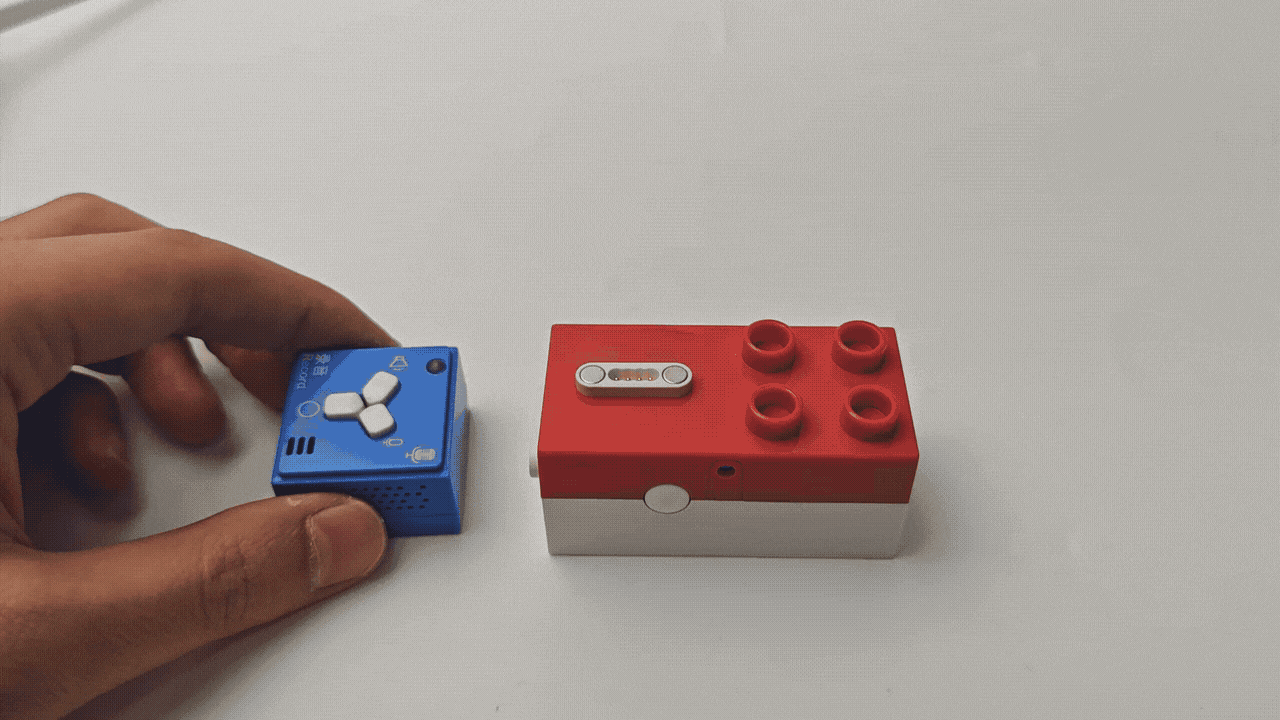

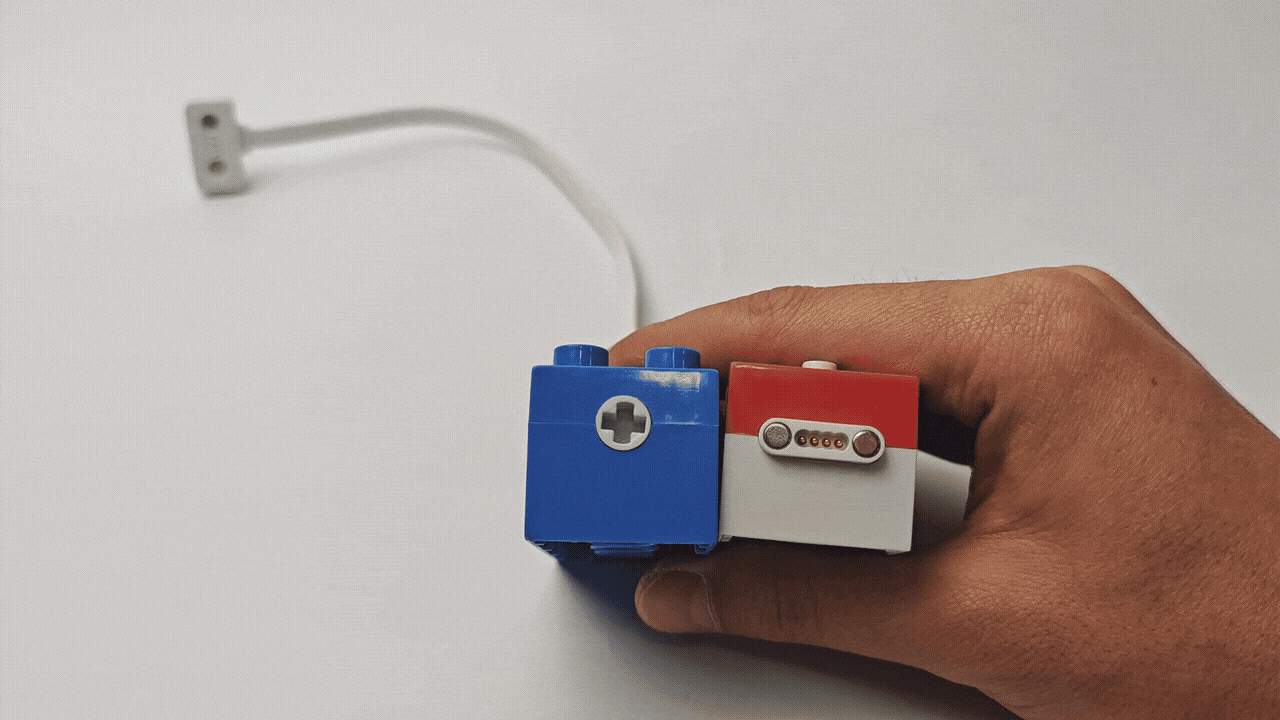

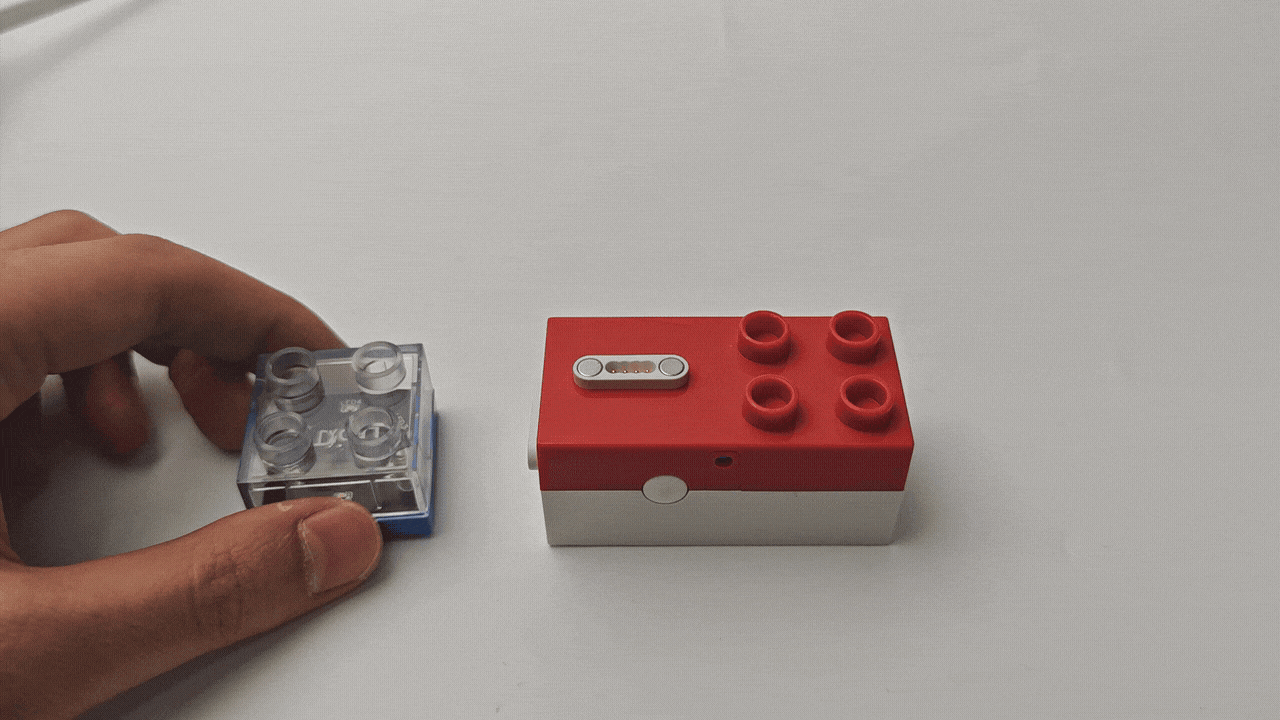

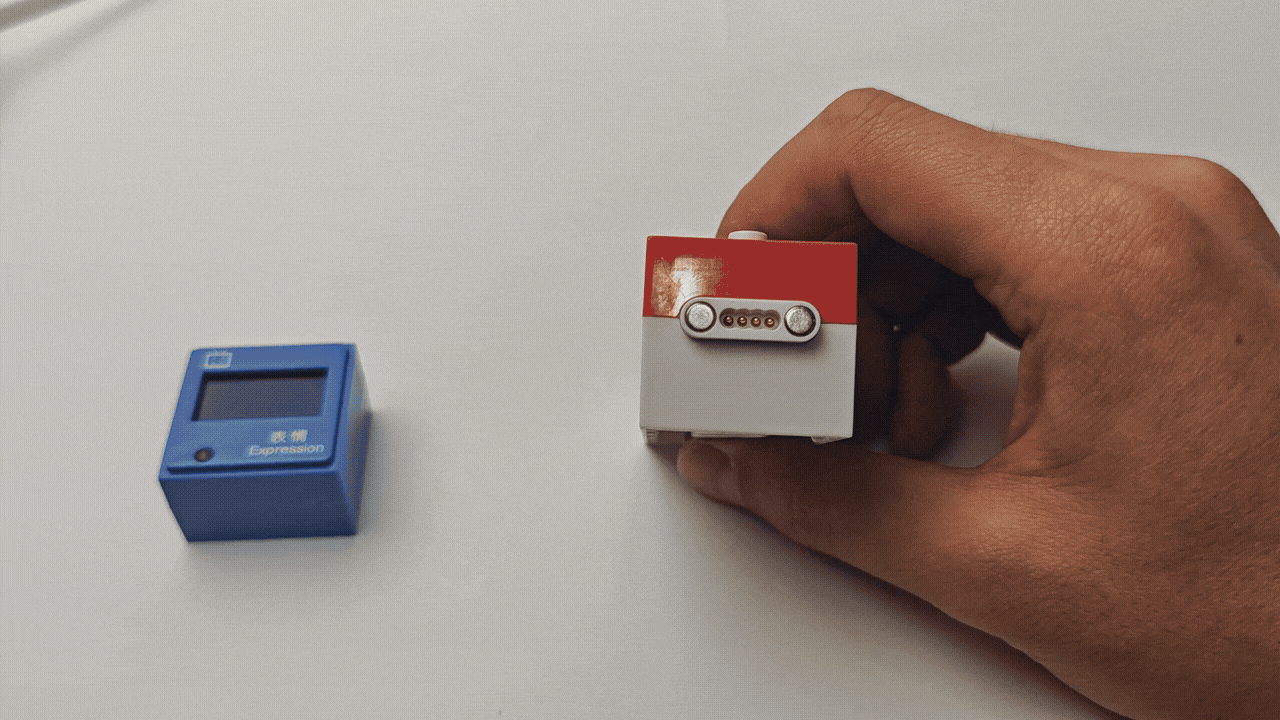

Play sound	Display expressions	Illuminate LED light	Rotate motor

Version Notes

This document is intended for the new version of the ICBlocks Power Block and is not applicable to the older version. The differences between the new and old versions are as follows:

1. New Version: Sound effects during power on/off, LED light flashes during charging.

2. Old Version: No sound effects during power on/off, LED light stays on during charging.
