Output Blocks

Motor Block

Introduction

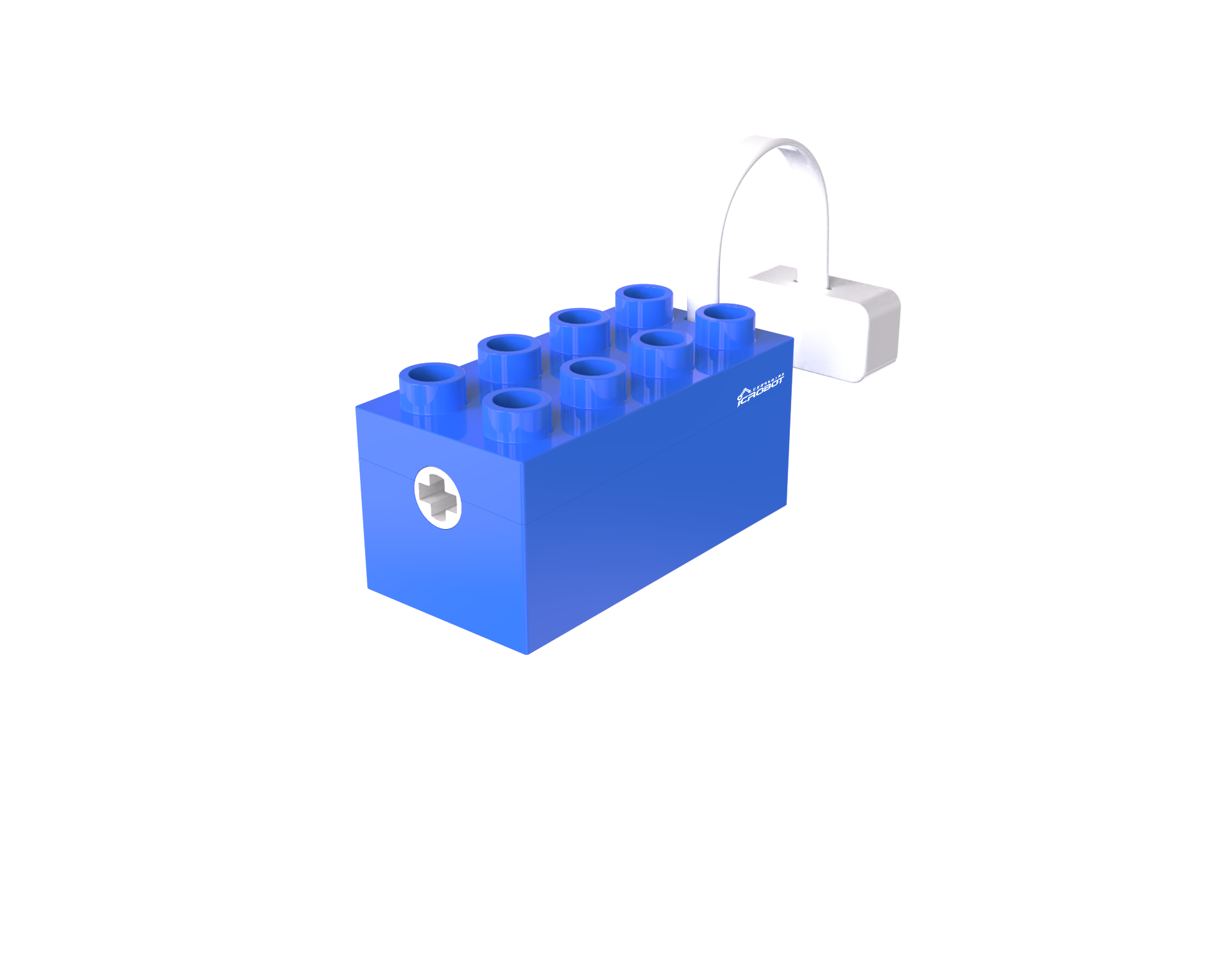

The Motor Block provides rotational power. The motor houses an N20 gear motor that generates power using the electromagnetic principle of the DC motor, and the gearbox reduces the speed to increase torque. The motor speed is controlled by an integrated main control chip and motor driver chip, enabling precise control.

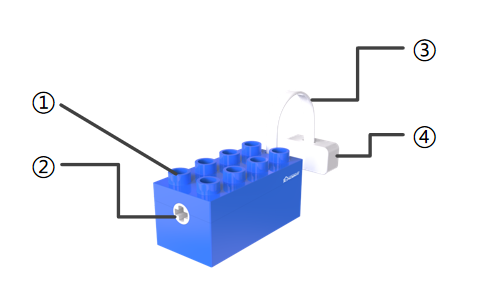

Structure

No.

Name

Description

①

Building Structure

Compatible with LEGO Duplo series building blocks

②

Power Output Shaft Connector

Outputs power from the built-in motor and connects with the building structure

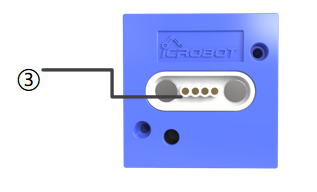

③

Magnetic Connector Cable

Connects to the magnetic port, transmitting signals

④

Magnetic Suction Base

Used for connecting the block to the Boxy Robot, providing stable power and data transmission

Specifications

Item

Description

Name

ICBlocks-Motor Block

Code

B0010009

Dimensions

63.3 (+275) x 31.4 x 33.4 mm

Weight

49 g

Material

ABS

Valid IDs

1081~1380

Operating Voltage

3.3 V

Connection Method

Magnetic

Usage Instructions

Type

Description

Example

Direct Control by Power Block

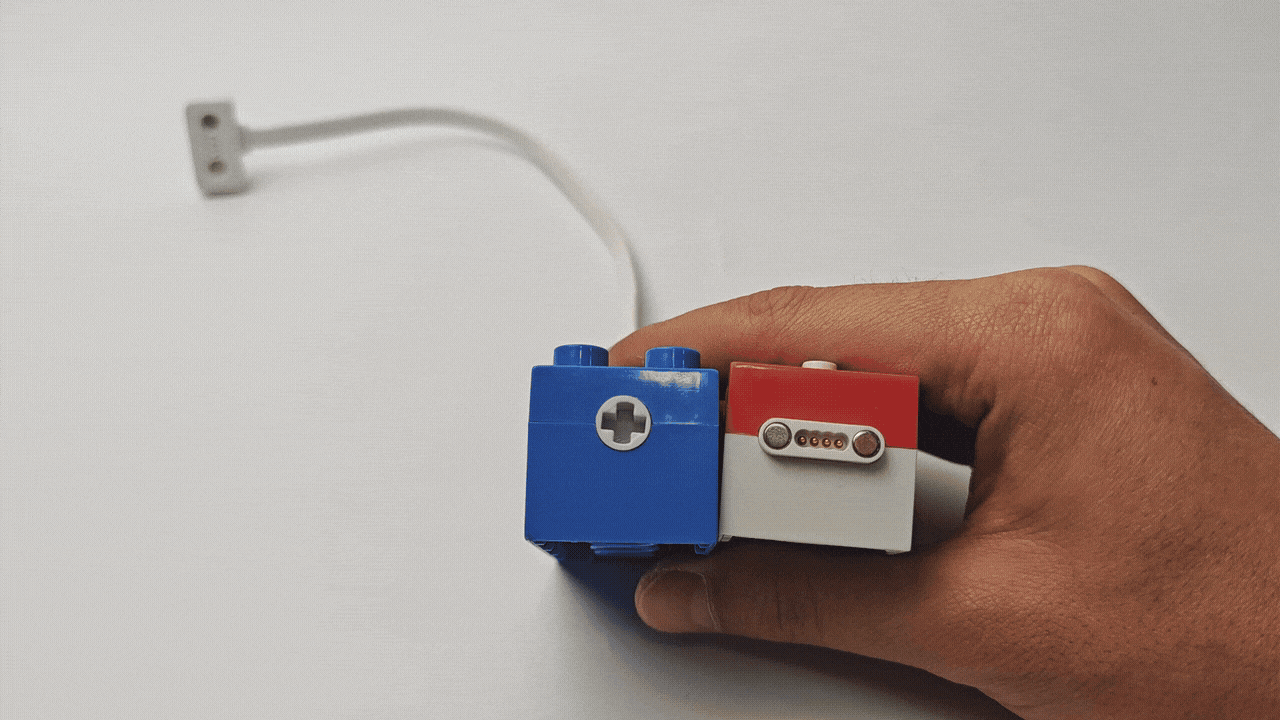

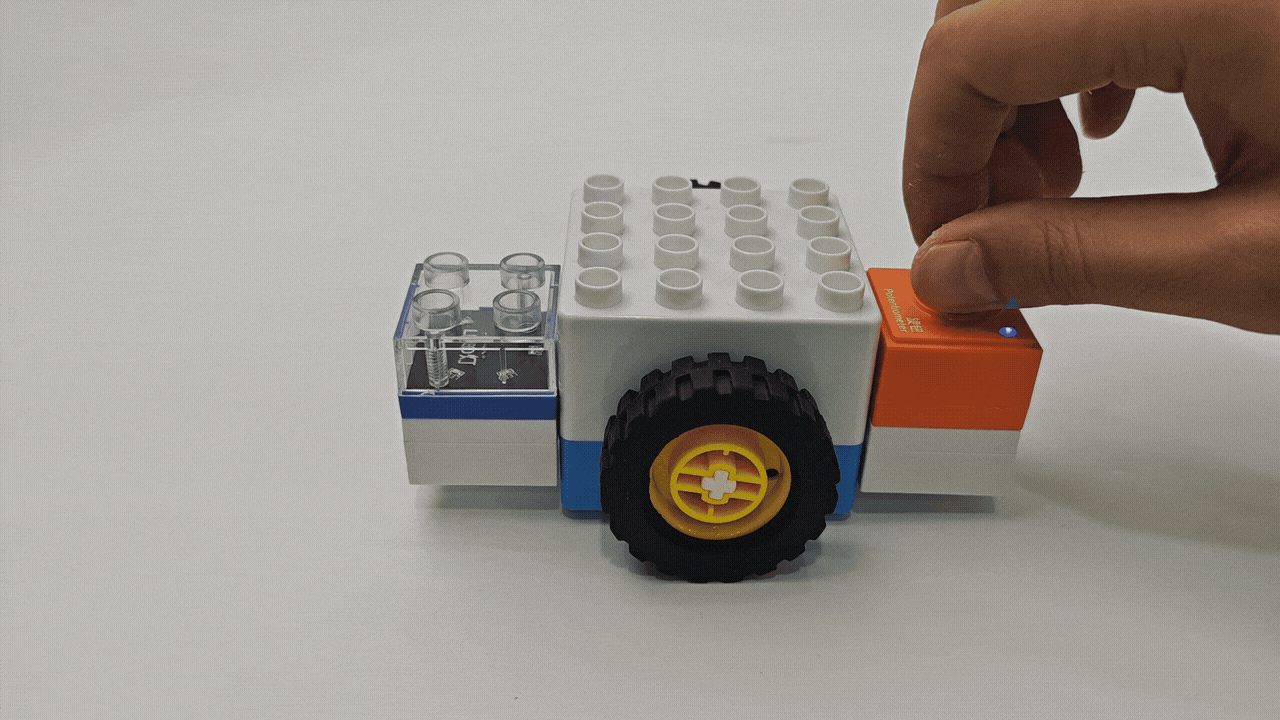

Connect the motor to the magnetic interface of the Power Block, long press the switch for 1s to start the motor.

Logic Control by Boxy Robot

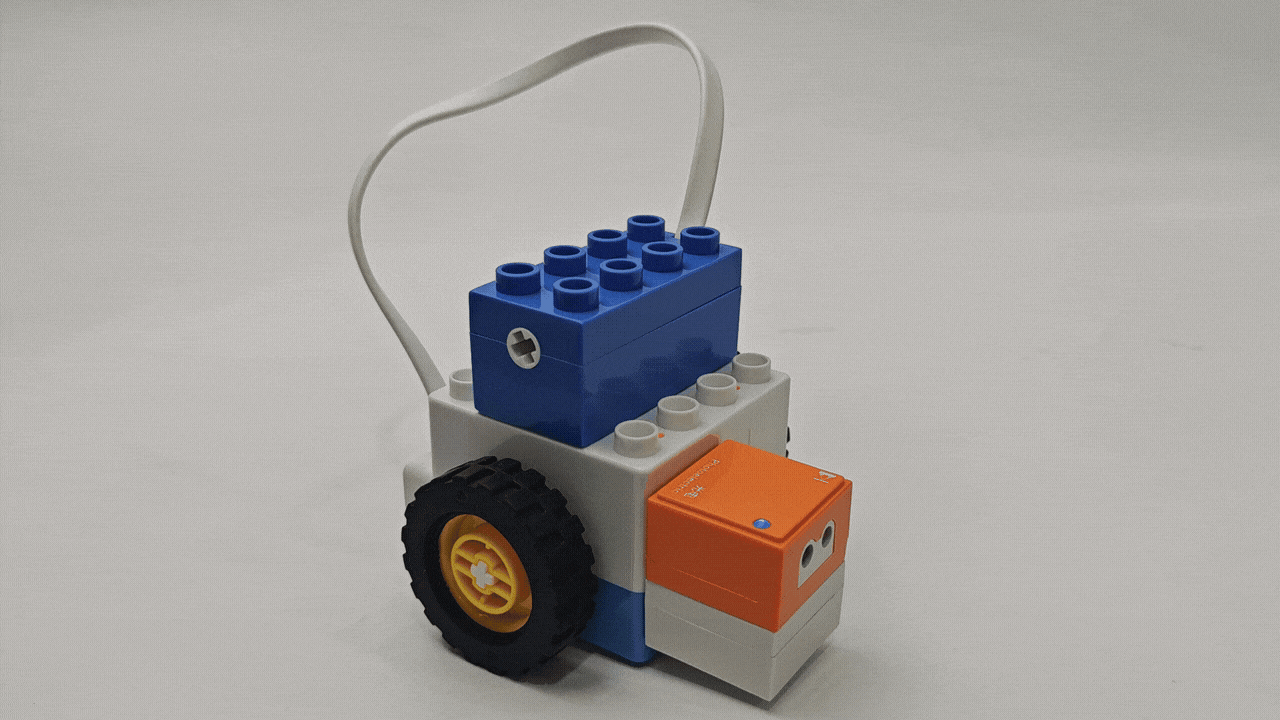

Connect the sensor block to the orange input port of Boxy Robot to control the motor on the blue output port. Note: “+” and “-” must correspond on input and output ports.
The photoelectric block connects to the orange input “+” to control motor rotation on the blue output “+”.

Screen-Free Coding Control

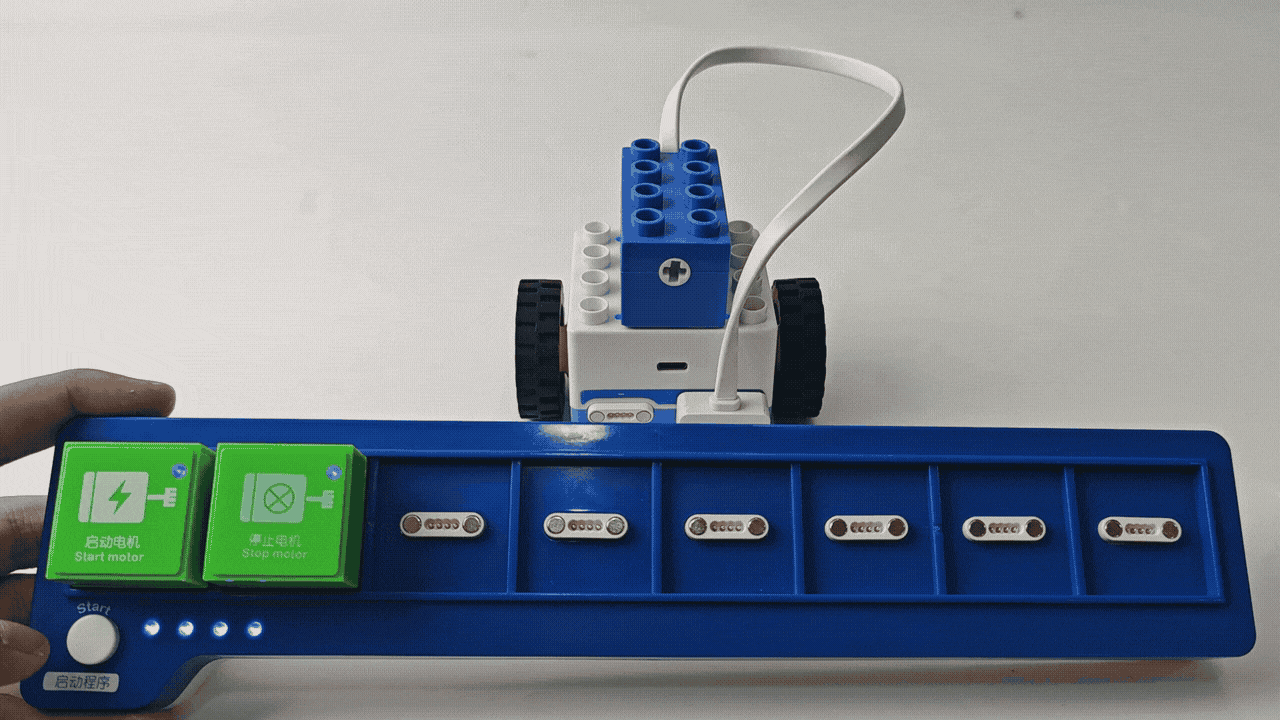

Using the coding board and green coding blocks, start or stop the motor using the start motor and stop motor blocks.

Bluetooth Controller Remote Control

After connecting the Boxy Robot to the Bluetooth controller, push or pull the right joystick to control the motor’s forward or reverse motion.

Expression Block

Introduction

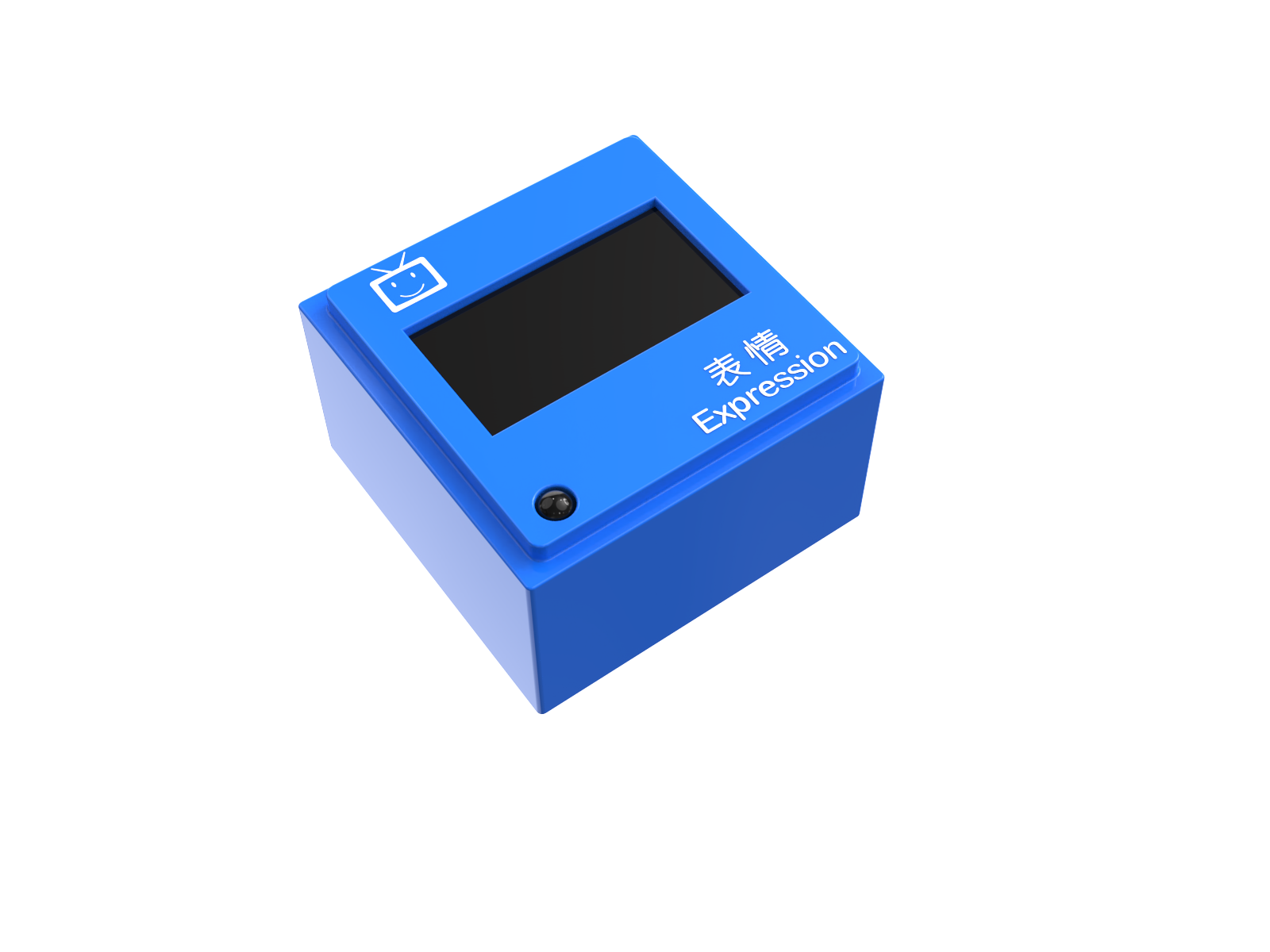

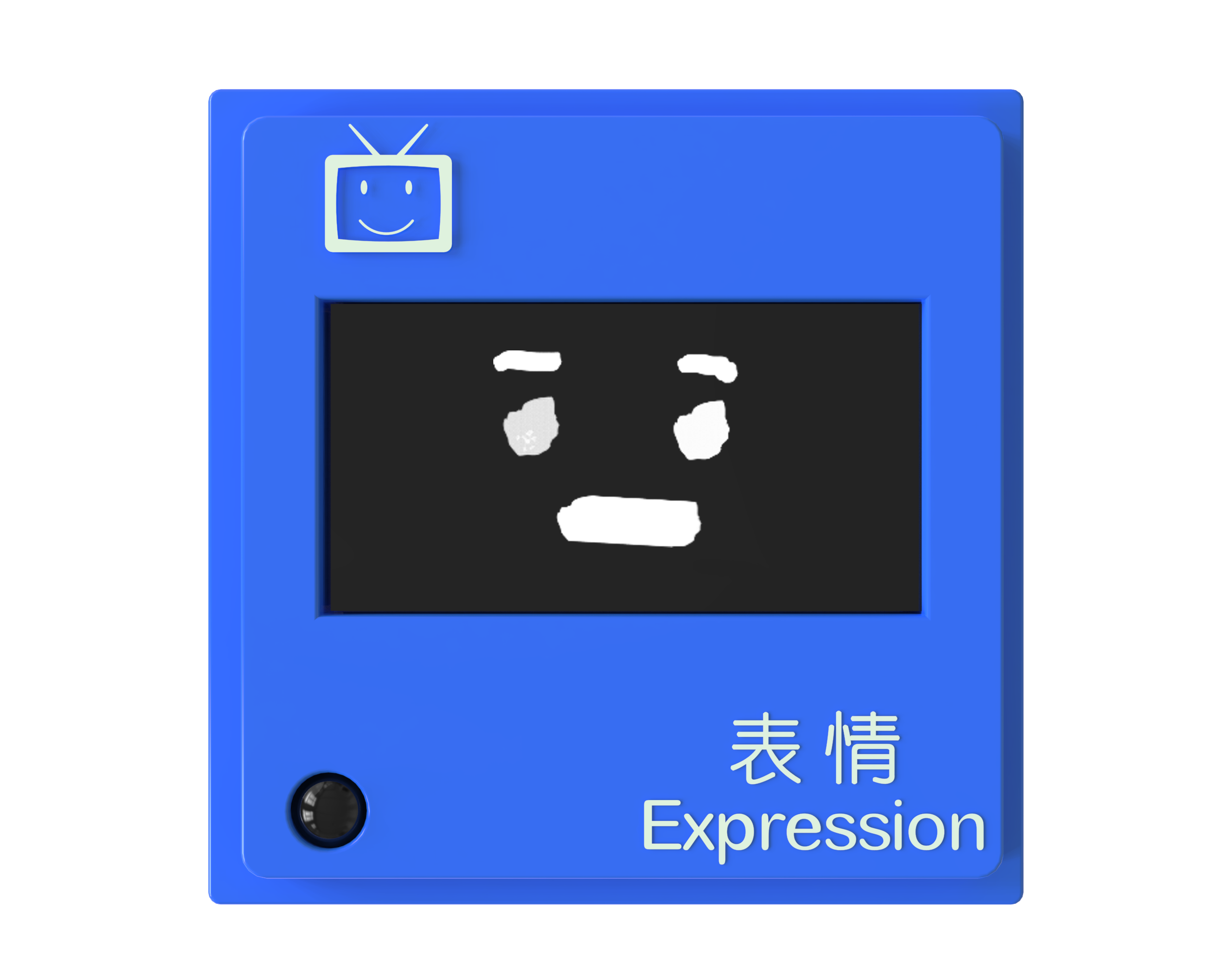

The Expression Block displays specified content and supports two display modes: expressions and counts. The mode can be switched by pressing a button.

Expression Display Mode

Count Display Mode

Button Illustration

Built-in 5 expressions: happy, sad, crying, smiling, and angry.

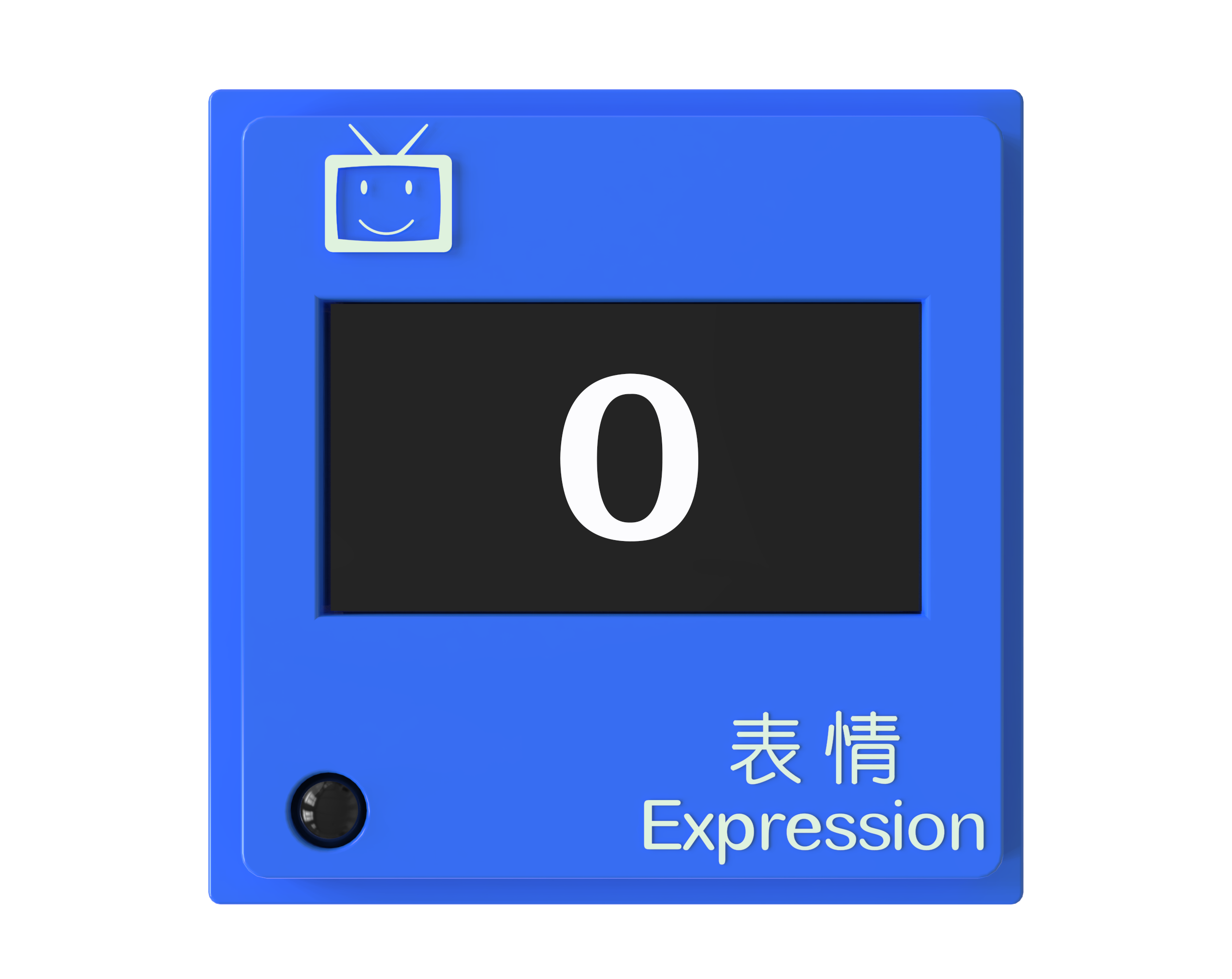

Displays numbers from 0 to 99.

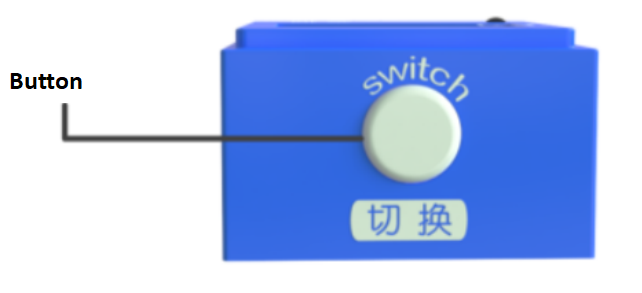

In the expression display mode, the button switches expressions.
In the count display mode, the button switches numbers.

Structure

No.

Name

Description

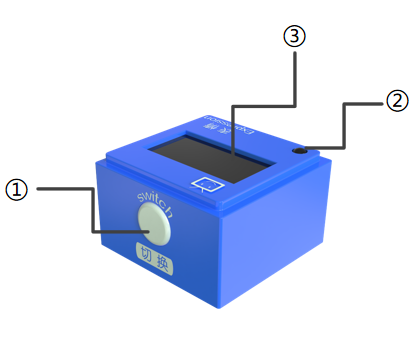

①

Button

Switch

②

Power Indicator

Indicates if the block is successfully connected to the Boxy Robot

③

Screen

Displays content

④

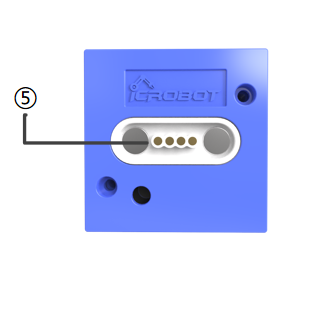

Magnetic Suction Base

Used for connecting the block to the Boxy Robot, providing stable power and data transmission

Specifications

Item

Description

Name

ICBlocks-Expression Block

Code

B0010011

Dimensions

32 x32 x 21 mm

Weight

16 g

Material

ABS

Valid IDs

561~680

Operating Voltage

3.3 V

Connection Method

Magnetic

Usage Instructions

Type

Description

Example

Direct Control by Power Block

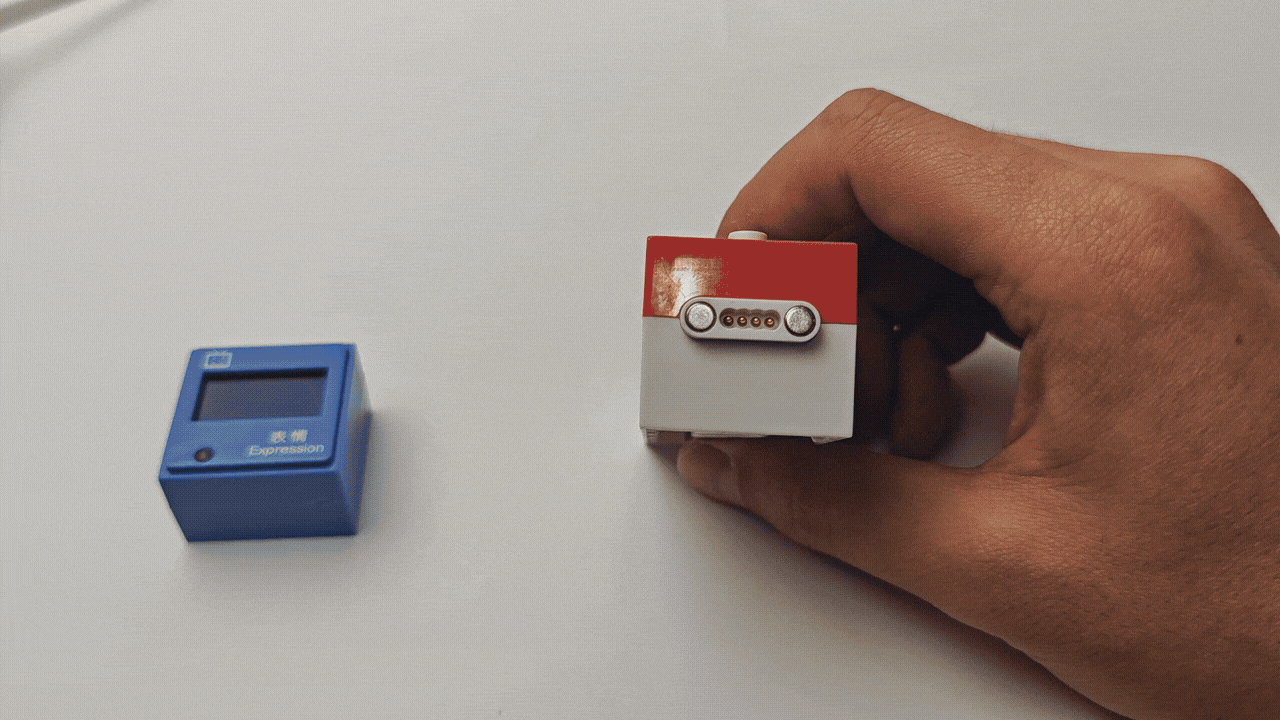

The Expression Block has two modes: Expression Display and Count Display. Connect to the Power Block’s magnetic interface, long press the switch for 1s to start, it will display one mode, remove and reattach to display the other mode.

Logic Control by Boxy Robot

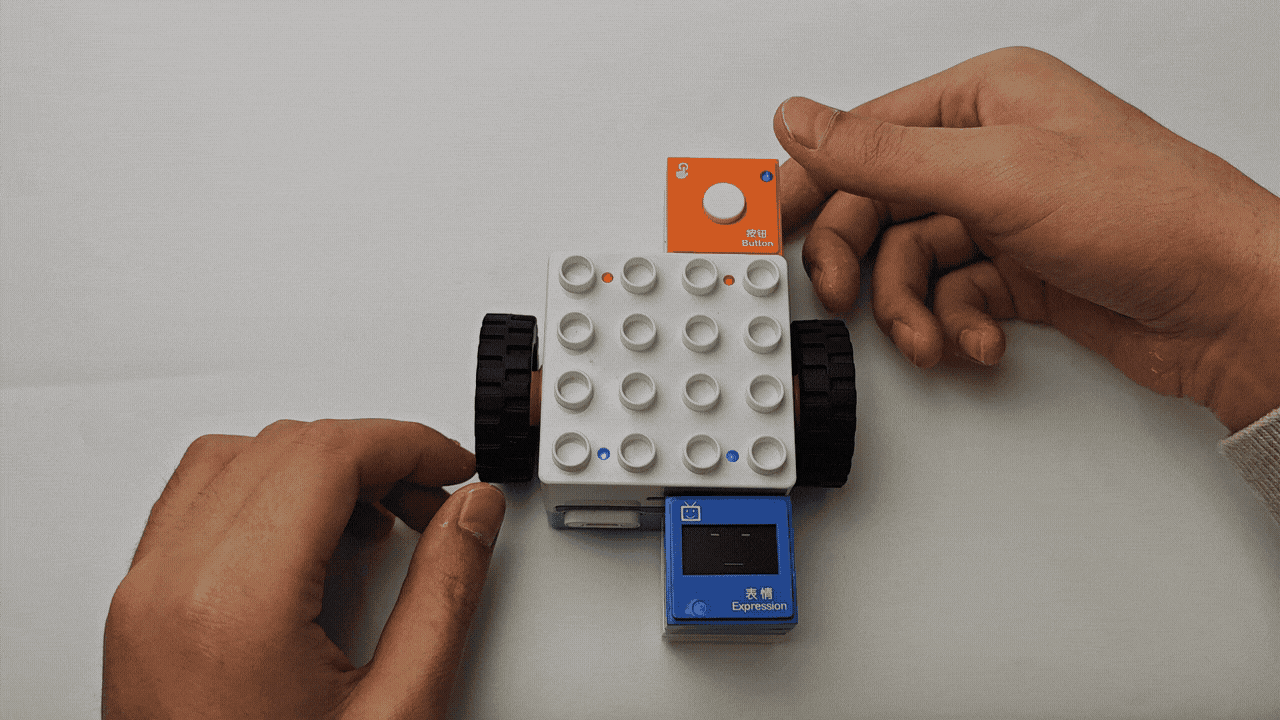

Connect the sensor block to the orange input port and the expression block to the blue output port. Ensure “+” and “-” match.
+ Expression Display Mode: Connect the button module to the orange input port “+” to control the blue output port “+” Expression Module. Press the button sensor to cycle through happy, crying, sad, smiling, and angry expressions.
+ Number Display Mode: Connect the button module to the orange input port “-” to control the blue output port “-” Expression Module. Press the button sensor to cycle through numbers 0 to 99 in the number display mode.

Screen-Free Coding Control

Using the coding board and green coding blocks, you can control the expression block to show one of five expressions: happy, sad, crying, smiling, or angry.

Bluetooth Controller Remote Control

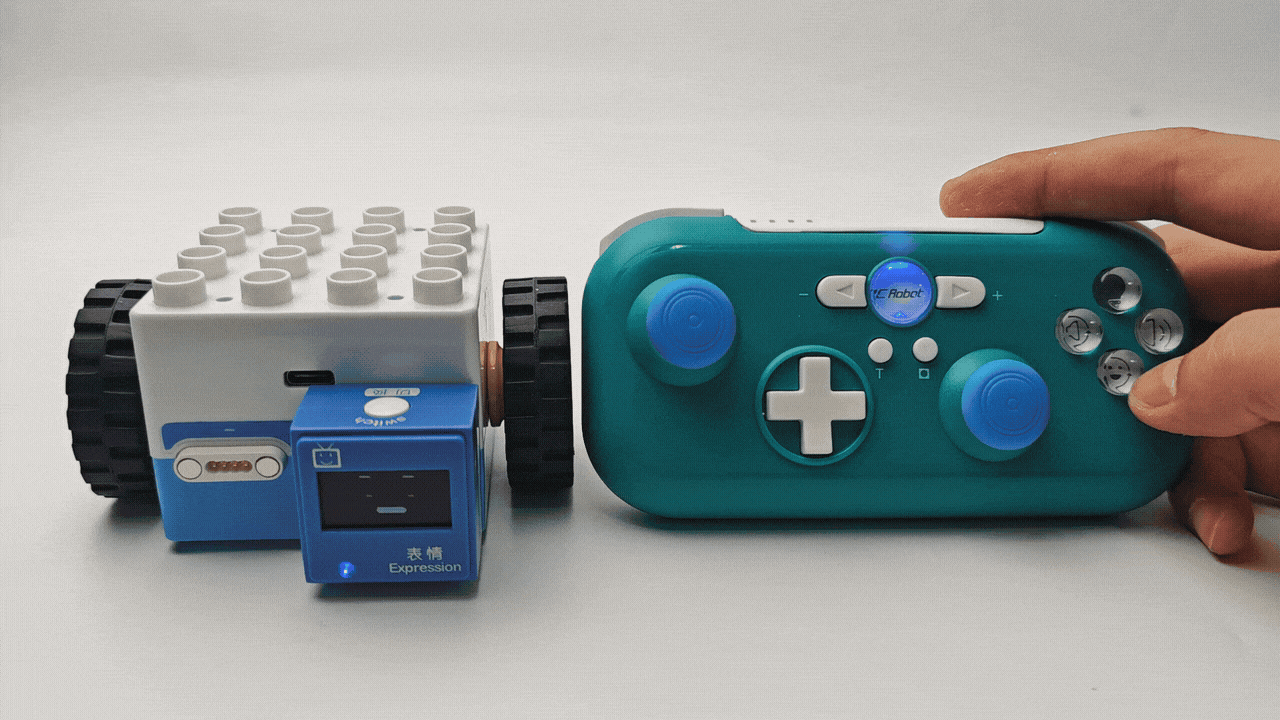

After connecting Boxy Robot to the Bluetooth controller, press the button to switch between happy, sad, crying, smiling, and angry expressions.

Record Block

Introduction

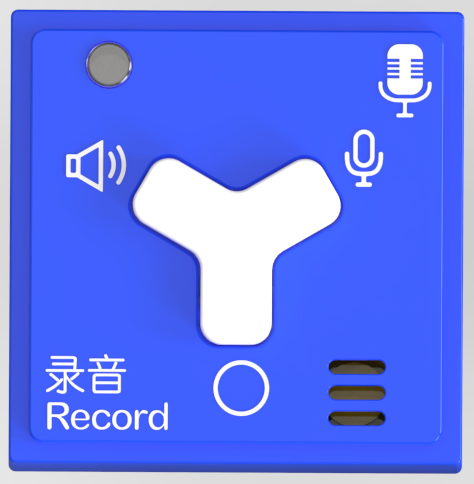

The Record Block contains both a speaker and a microphone, capable of playing recorded sounds and 6 built-in sounds.

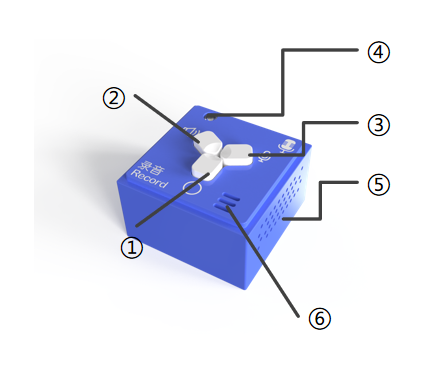

Structure

No.

Name

Description

①

⚪ Button

Press to switch to the next sound; cycles back to the first one at the end

②

🔈 Button

Play the current sound source

③

🎙 Button

Press and hold to record sound

④

Power Indicator

Indicates if the block is successfully connected to the Boxy Robot

⑤

Speaker & Sound Hole

The speaker hole for sound output

⑥

Microphone & Pickup Hole

The microphone hole for sound recording

⑦

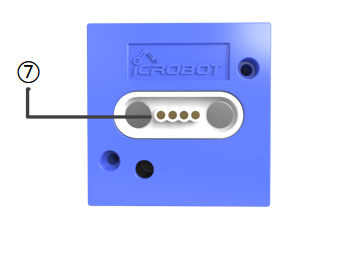

Magnetic Suction Base

Used for connecting the block to the Boxy Robot, providing stable power and data transmission

Specifications

Item

Description

Name

ICBlocks-Record Block

Code

B0010010

Dimensions

32 x 32 x 21 mm

Weight

15 g

Material

ABS

Valid IDs

3260~3500

Operating Voltage

3.3 V

Connection Method

Magnetic

Usage Instructions

Type

Description

Example

Direct Control by Power Block

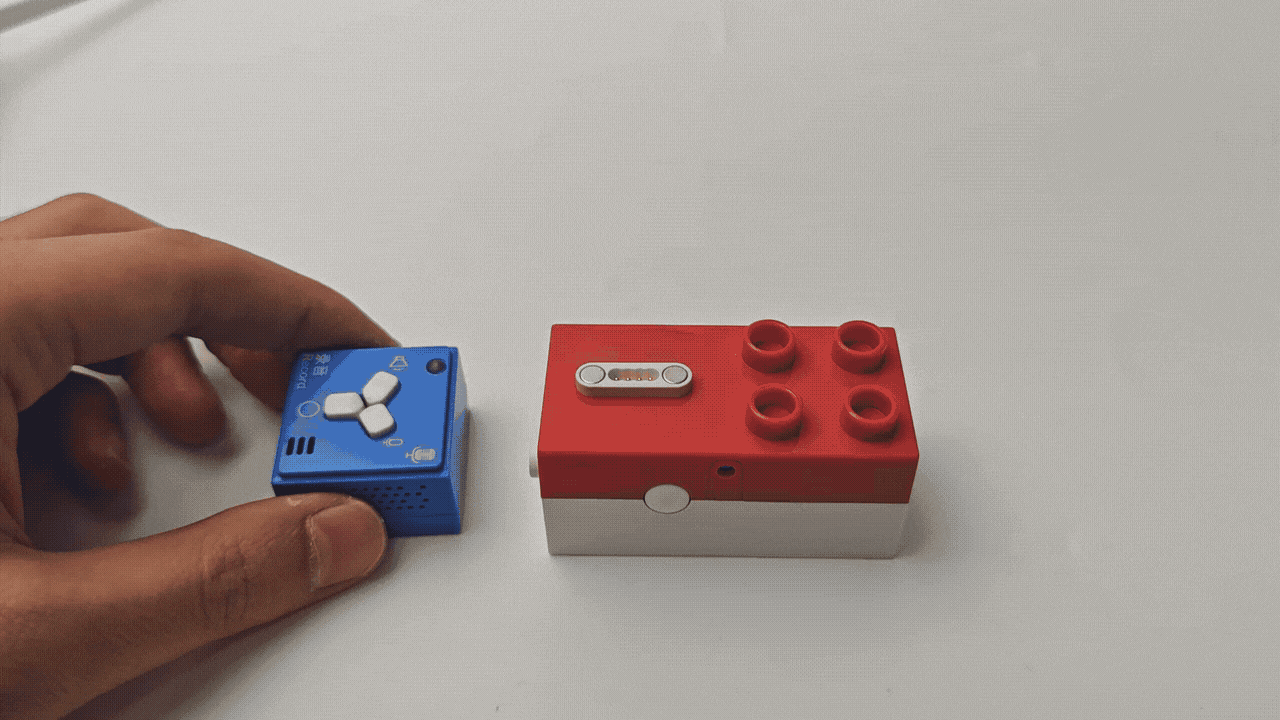

Connect the Record Block to the Power Block’s magnetic interface, long press the switch for 1s to start, press 🔈 to play the selected sound, press 🎙 to record sound, press ⚪ to switch between built-in sounds.

Logic Control by Boxy Robot

Connect the sensor block to the orange input port of Boxy Robot, control the record block on the blue output port. Note: “+” and “-” must correspond on input and output ports.

Screen-Free Coding Control

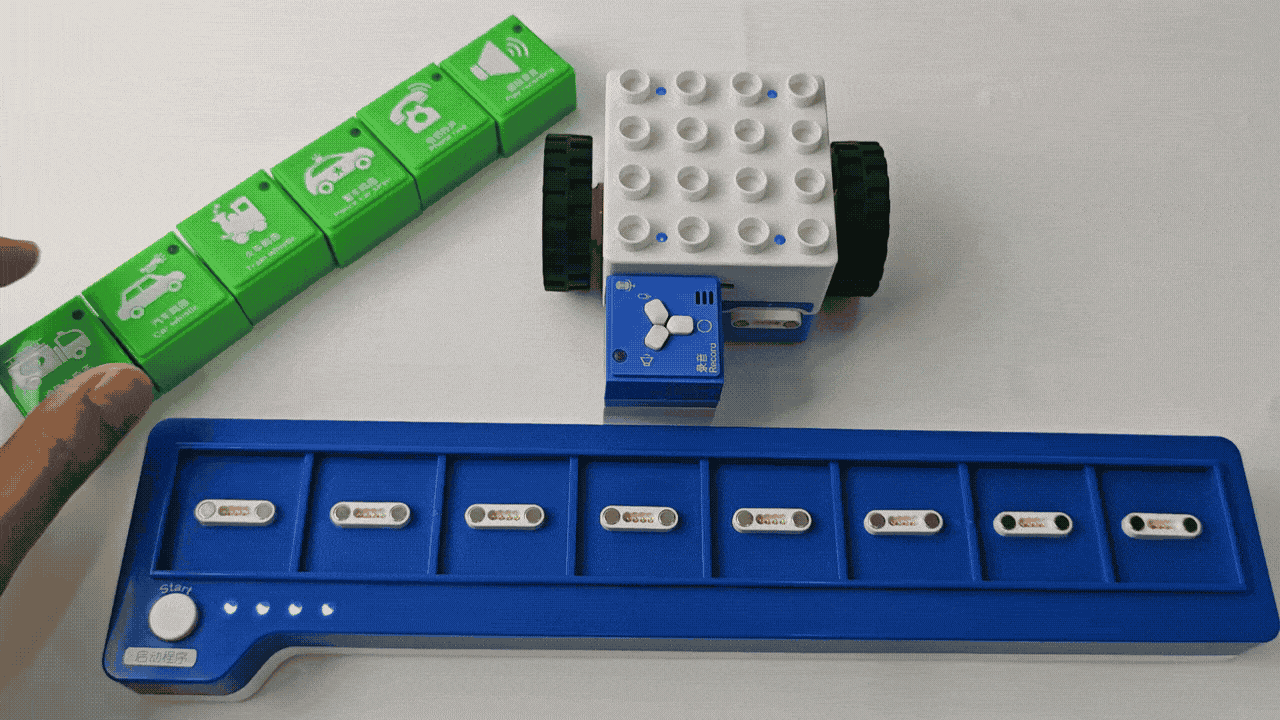

Using the coding board and green coding blocks, use Car Whistle Block, Fireengine Siren Block, Train Whistle Block, Police Car Siren Block, and Play Recording Block to control the sounds.

Bluetooth Controller Remote Control

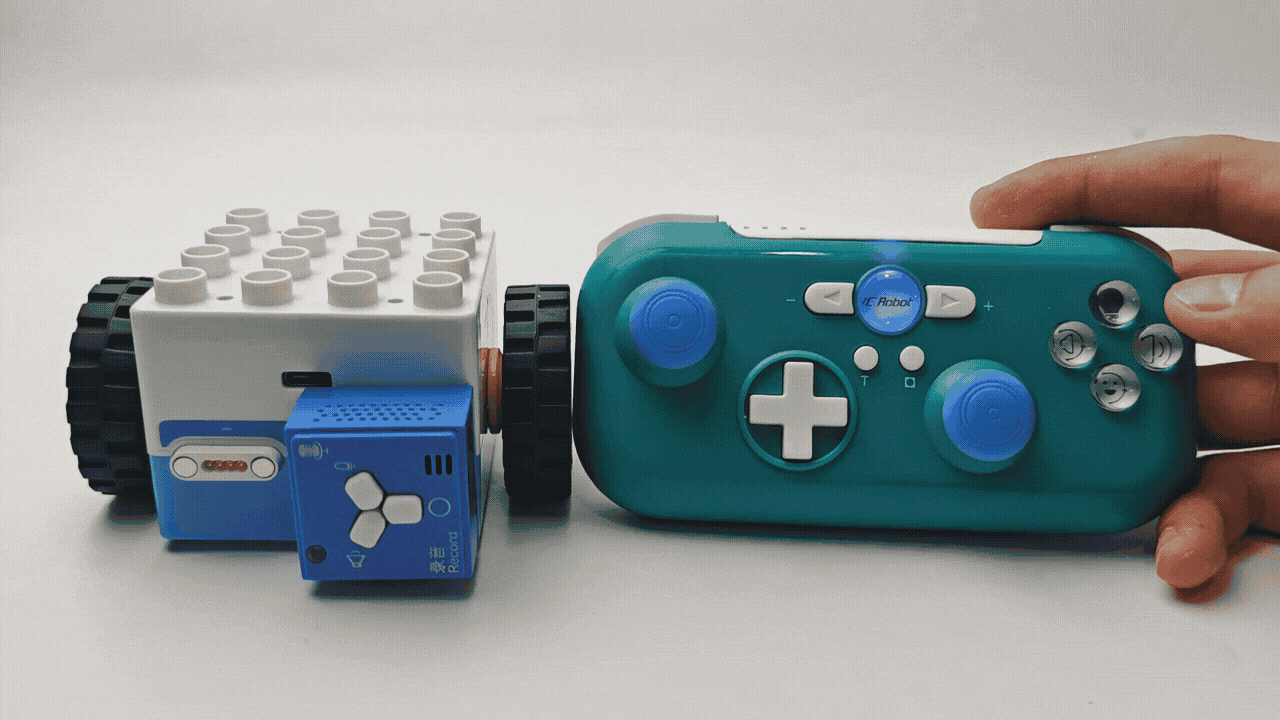

After the Boxy Robot is connected with the Bluetooth handle, press switch button to switch between Car Whistle Block, Fireengine Siren Block, Train Whistle Block, Police Car Siren Block, and Play Recording Block,press play button to play recordings.

LED Block & Color LED Block

Introduction

The LED Block emits white light.
The Color LED Block emits alternating flashing colored lights.

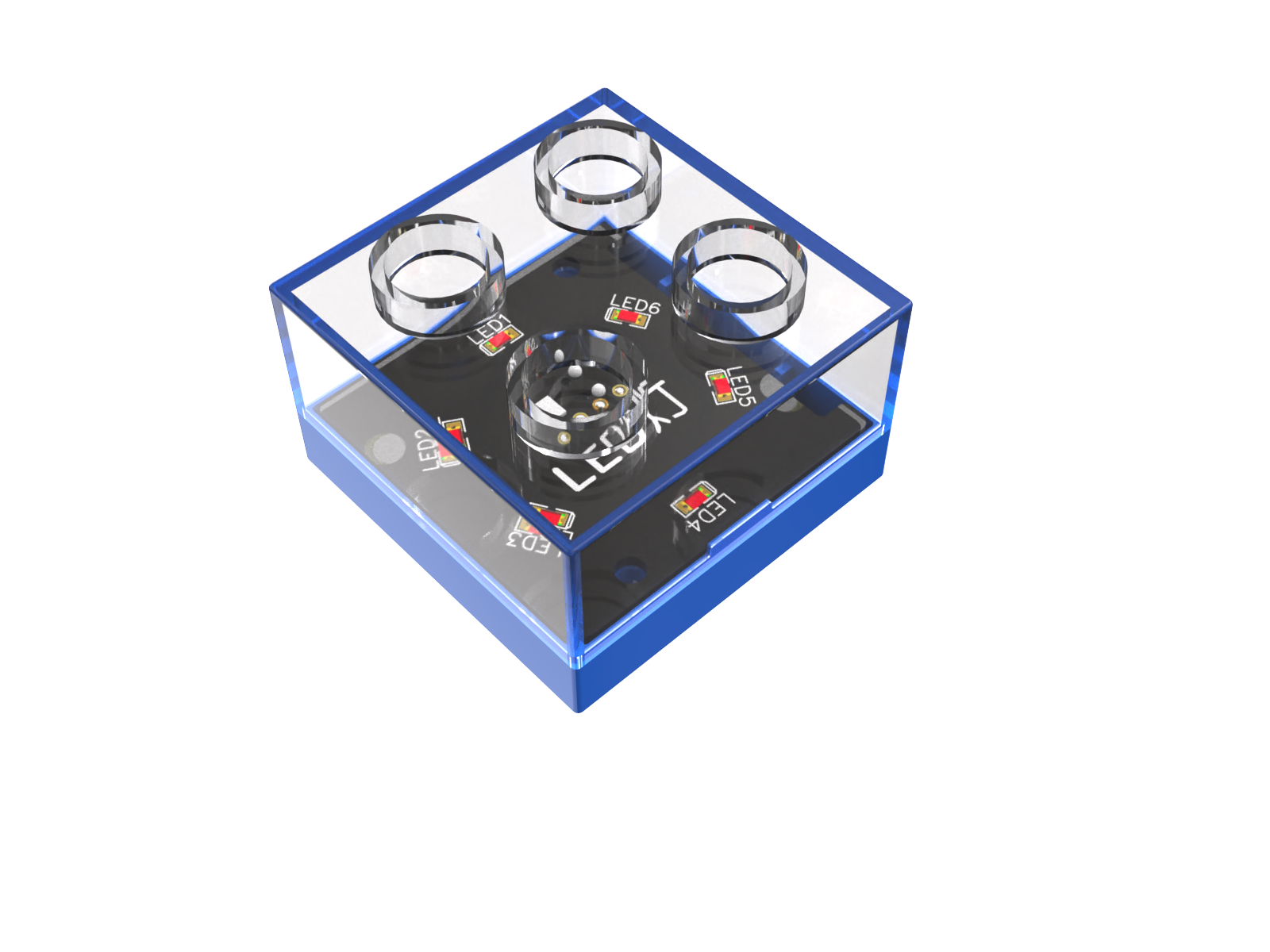

Structure

Color LED Block

LED Block

Block Back

No.

Name

Description

①

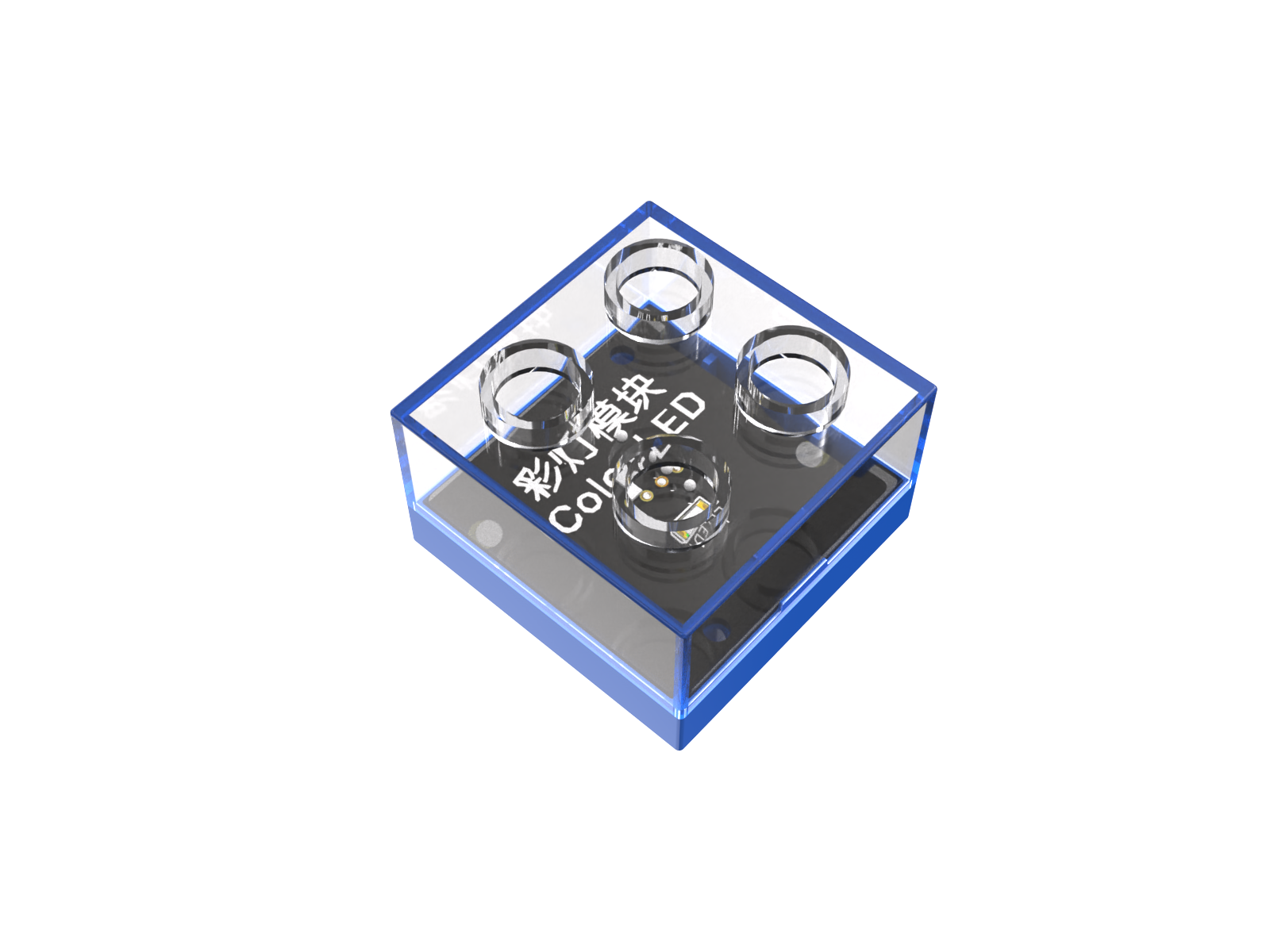

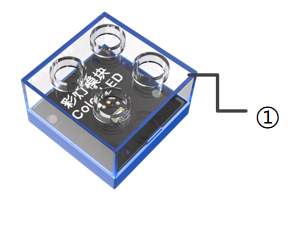

Transparent Case

Protects the internal LED and electronic components

②

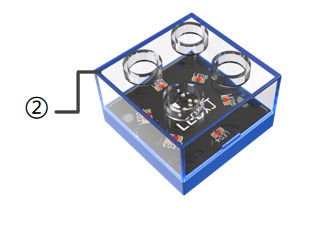

Transparent Case

Protects the internal LED and electronic components

③

Magnetic Suction Base

Used for connecting the block to the Boxy Robot, providing stable power and data transmission

Specifications

Item

Description

Name

ICBlocks-LED Block

Code

B0010012

Operating Voltage

32 x 32 x 24 mm

Weight

11 g

Material

ABS

Valid IDs

681~880

Operating Voltage

3.3 V

Connection Method

Magnetic

Item

描述

Name

ICBlocks-Color LED Block

Code

B0010013

Operating Voltage

32 x 32 x 24 mm

Weight

11 g

Material

ABS

Valid IDs

681~880

Operating Voltage

3.3 V

Connection Method

Magnetic

Usage Instructions

Type

Description

Description

Direct Control by Power Block

Connect the LED or Color LED Block to the Power Block’s magnetic interface, long press the switch for 1s to start the light. The LED emits white light / Color LED emits alternating colored lights.

Logic Control by Boxy Robot

Connect the sensor block to the orange input port of Boxy Robot, control the LED block on the blue output port. Note: “+” and “-” must correspond on input and output ports.

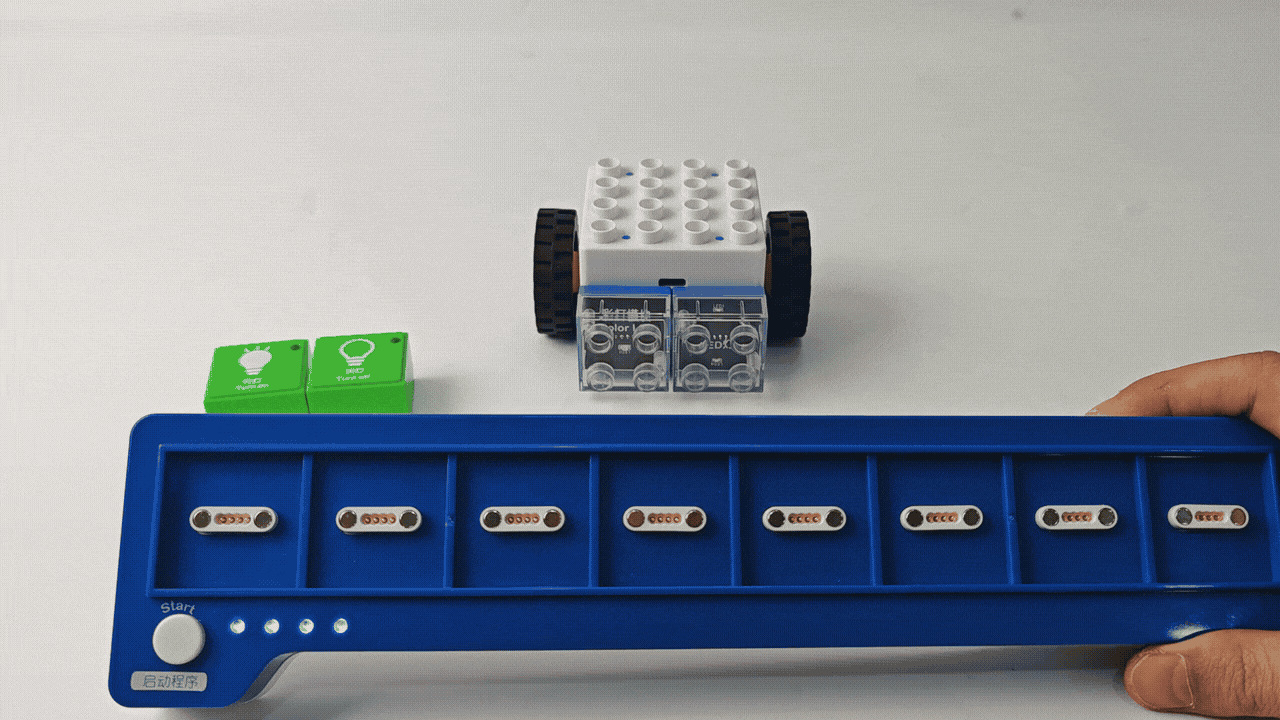

+ Clockwise: Connect the Potentiometer Block to the orange input “+” and the Color LED/LED Block to the blue output “+”. The block will gradually brighten.
+ Counterclockwise: Connect the Potentiometer Block to the orange input “-” and the Color LED/LED Block to the blue output “-”. The block will gradually dim until it turns off.

Screen-Free Coding Control

Using the coding board and green coding blocks, use the light on/off blocks to control the Color LED/LED blocks.

Bluetooth Controller Remote Control

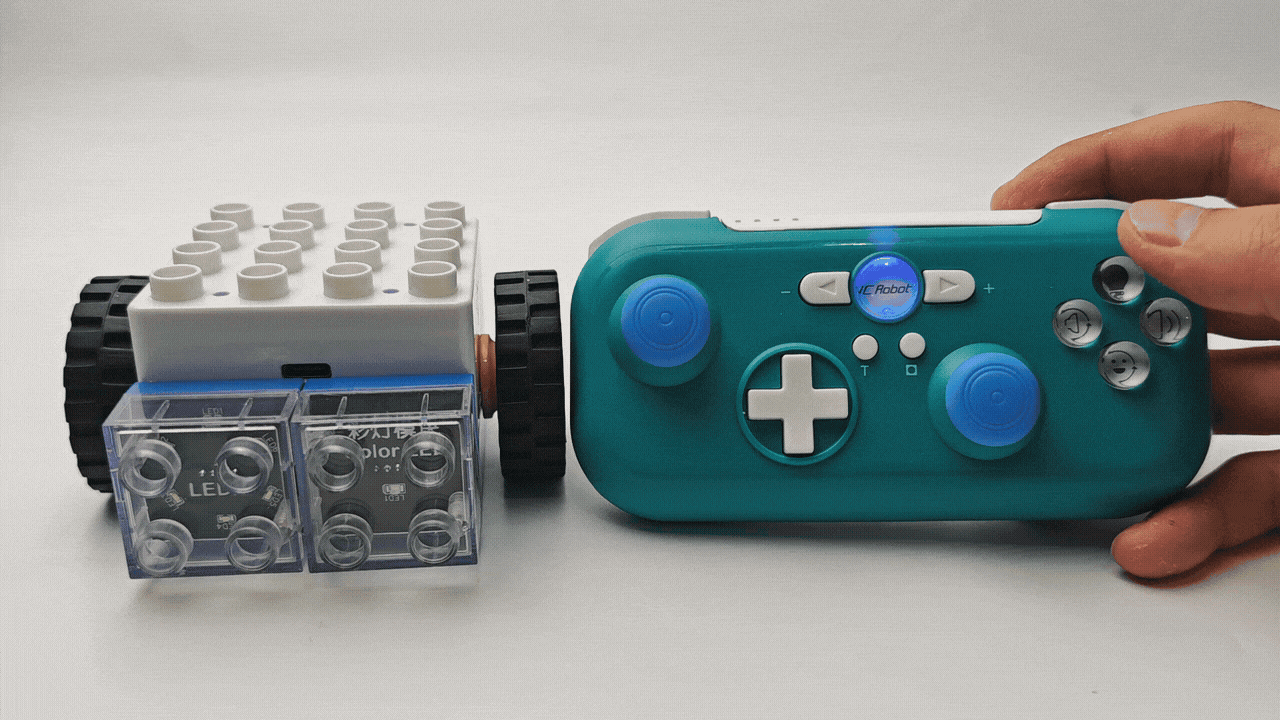

After connecting Boxy Robot to the Bluetooth controller, press turn on the light button to turn the Color LED/LED on or off.
