Auxiliary Blocks
Introduction
The ICBlocks series boasts powerful functionality. To meet diverse assembly needs and enhance the adaptability of the set, we have designed auxiliary blocks, including the Magnetic Transfer Block and Magnetic Extension Wire.
Magnetic Transfer Block
Structure
No. |
Name |
Description |
|---|---|---|
① |
Magnetic Male Port |
Connects sensor modules and actuators. |
② |
Magnetic Female Port |
Connects to the Boxy Robot. |
③ |
Bottom Structure |
Compatible with LEGO Duplo large-block bricks. |
Specifications
Item |
Description |
|---|---|
Name |
ICBlocks-Transfer Block |
Code |
B0010014 |
Dimensions |
32 x 32 x 18 mm |
Weight |
13 g |
Material |
ABS |
Operating Voltage |
3.3 V |
Connection Method |
Magnetic |
Usage Instructions
Change Block Connection Direction: When used with the Gyro Block and the Boxy Robot, this block helps maintain a horizontal orientation.
Facilitate Construction: Adapts to a wider range of usage scenarios.
Magnetic Extension Wire

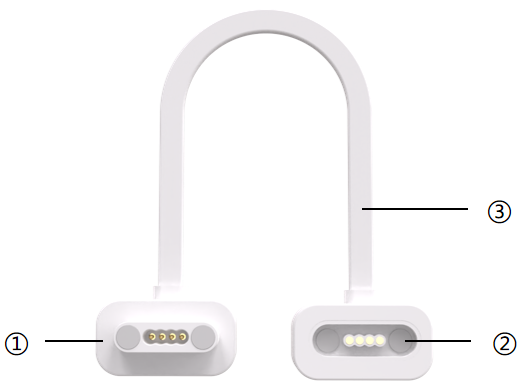

Structure
No. |
Name |
Description |
|---|---|---|
① |
Magnetic Male Port |
Connects sensor modules and actuators. |
② |
Magnetic Female Port |
Connects to the Boxy Robot. |
③ |
Connecting Cable |
Transmits signals between the two ports. |
Specifications
Item |
Description |
|---|---|
Name |
ICBlocks-Magnetic Extension Wire |
Code |
Y0080020155 |
Dimensions |
270 x 28 x 11 mm |
Weight |
19 g |
Material |
ABS + Silicone |
Operating Voltage |
3.3 V |
Connection Method |
Magnetic |
